| Box for installing 19” devices or panels with connectors. | |
| Features | Built-in wall |
| Brand | Pinanson |
| Place | Built-in wall |
| Format | Box WR INS |

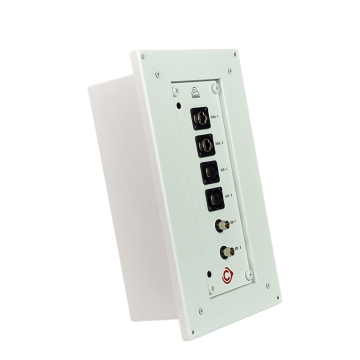

Built-in box Wall Rack INS
Fully customizable product
We will need you to indicate the connectors you need in this type of product and we will return a graphic view and price.
How we have customized this product for other clients
CaixaForum Valencia
Customized box for the CaixaForum Valencia auditorium with connectors and logo according to client preferences

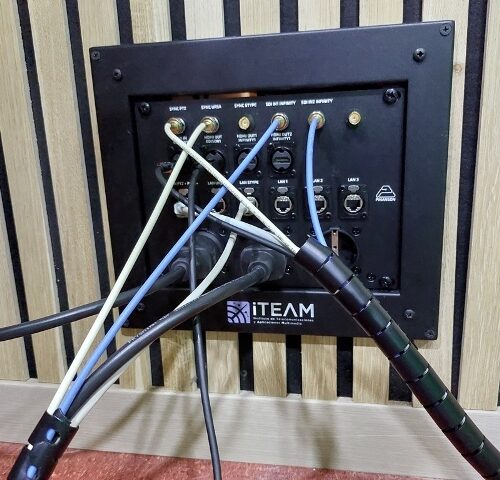

iTEAM (Universitat Politecnica de Valencia - Spain)
Wall Rack INS & panel with 6 BNC(12G), 6 RJ C6A, 4 HDMI & 3 SCHUKO.

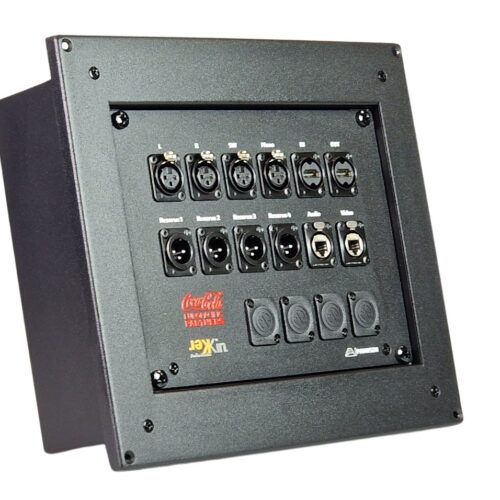

CocaCola (Europacific Partners)
Wall Rack INS & panel with 4 XLRH, 4 XLRM, 4 TAPAS, 2 HDMI & 2 RJ C6A.
Barcelona Chamber of Commerce (Spain)
Wall Rack INS & panel with 2 BNC, 2 XLRF & 2 RJ C6A,
| Nombre | Name | Caja WR INS | Box WR INS | ||
| Emplazamiento: | Position: | Superficie | Surface | ||
| Instalacion: | Installation: | Encastrable | Built-in | ||
| Conexión: | Connection: | Perpendicular superficie | Perpendicular to the surface | ||
| Material: | Material: | Solapa: | Flap: | Acero 1,5mm | Steel 1,5mm |
| Puerta: | Door: | Acero 1,5mm | Steel 1,5mm | ||
| Caja: | Box: | Acero 1,5mm | Steel 1,5mm | ||
| Panel de conexiones: | Connection pannel: | Aluminio extrusionado | Extruded aluminium | ||
| Acabado: | Finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request. | ||
| Acrónimo: | Acronym: | WR INS | WR INS | ||
| Dimesiones mm (An X Al X F): | Dimmensions mm (W X H X D): | 2RUM (313 X 186 X 100) | 2RUM (313 X 186 X 100) | ||
| 2RUM (313 X 186 X 200) | 2RUM (313 X 186 X 200) | ||||
| 4RUM (313 X 275 X 100) | 4RUM (313 X 275 X 100) | ||||
| 4RUM (313 X 275 X 200) | 4RUM (313 X 275 X 200) | ||||
| 4RU (560 X 275 X 100) | 4RU (560 X 275 X 100) | ||||
| 4RU (560 X 275 X 200) | 4RU (560 X 275 X 200) | ||||
