| Box with connectors for connecting any type of signal. | |
| Connectors | With the necessary connectors in each case. |
| Place | Box for screwing onto a stand to the floor |
| Format | Box WR Vertical |
| Manufactured | In Spain by Pinanson S.L. |
RELATED BLOG POSTS

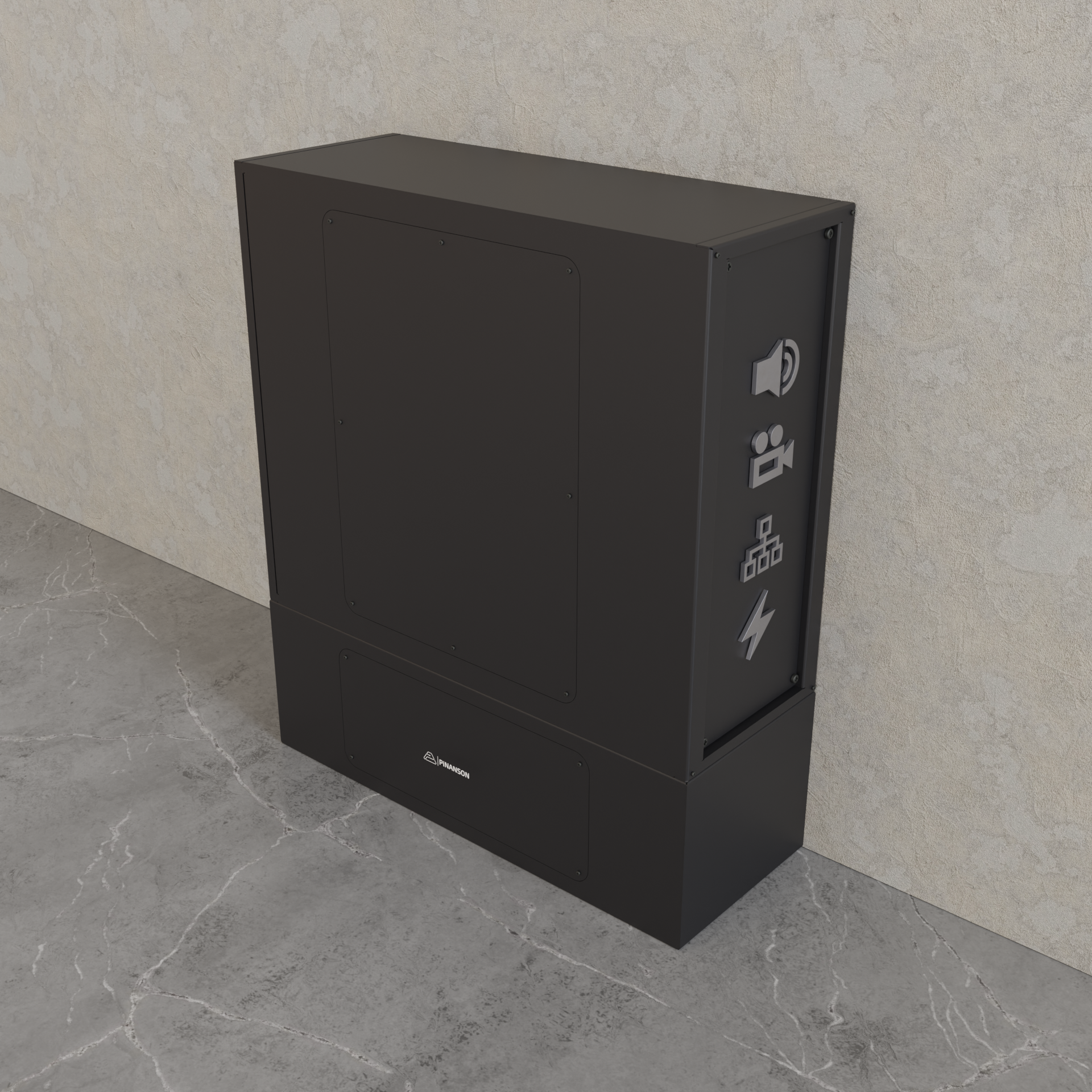

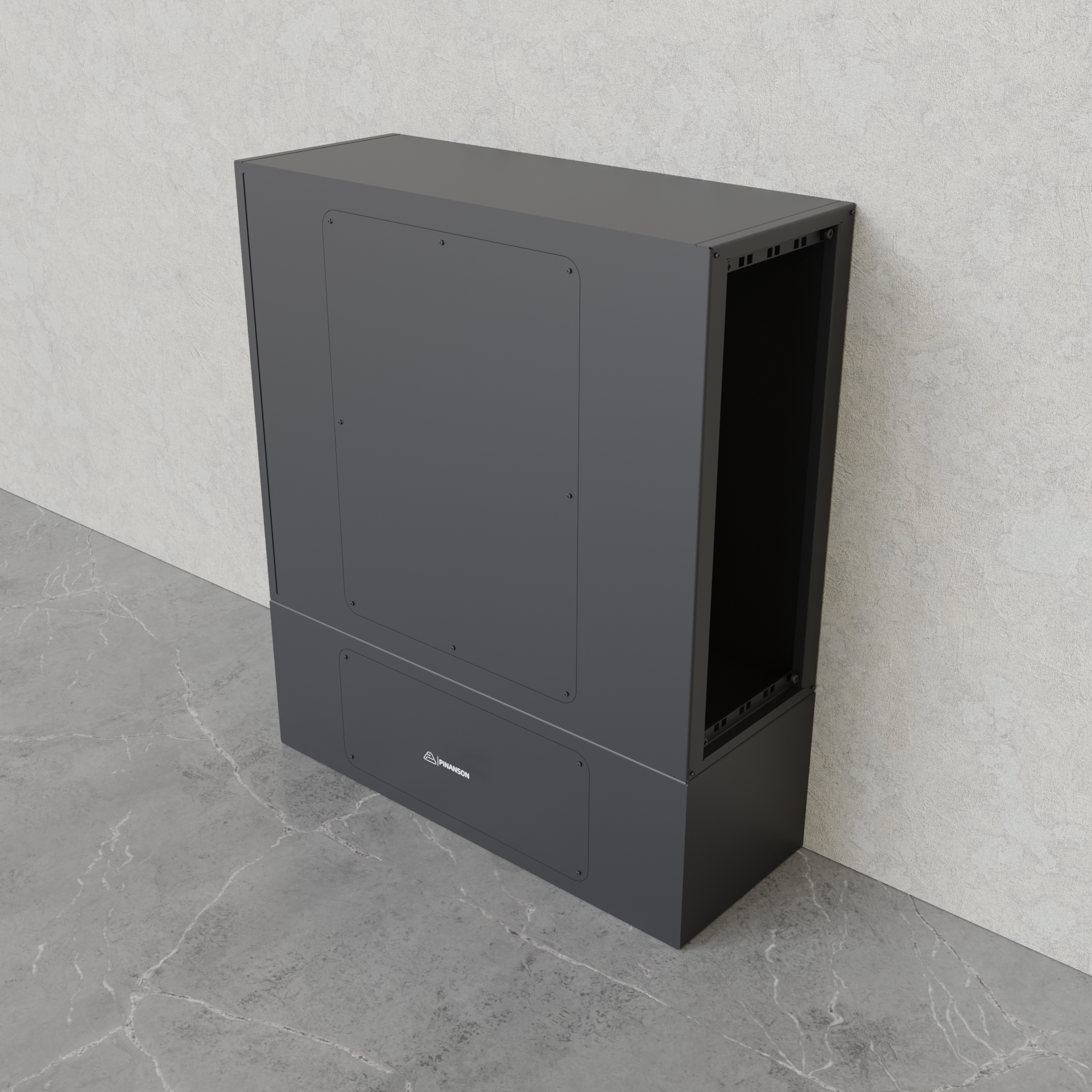

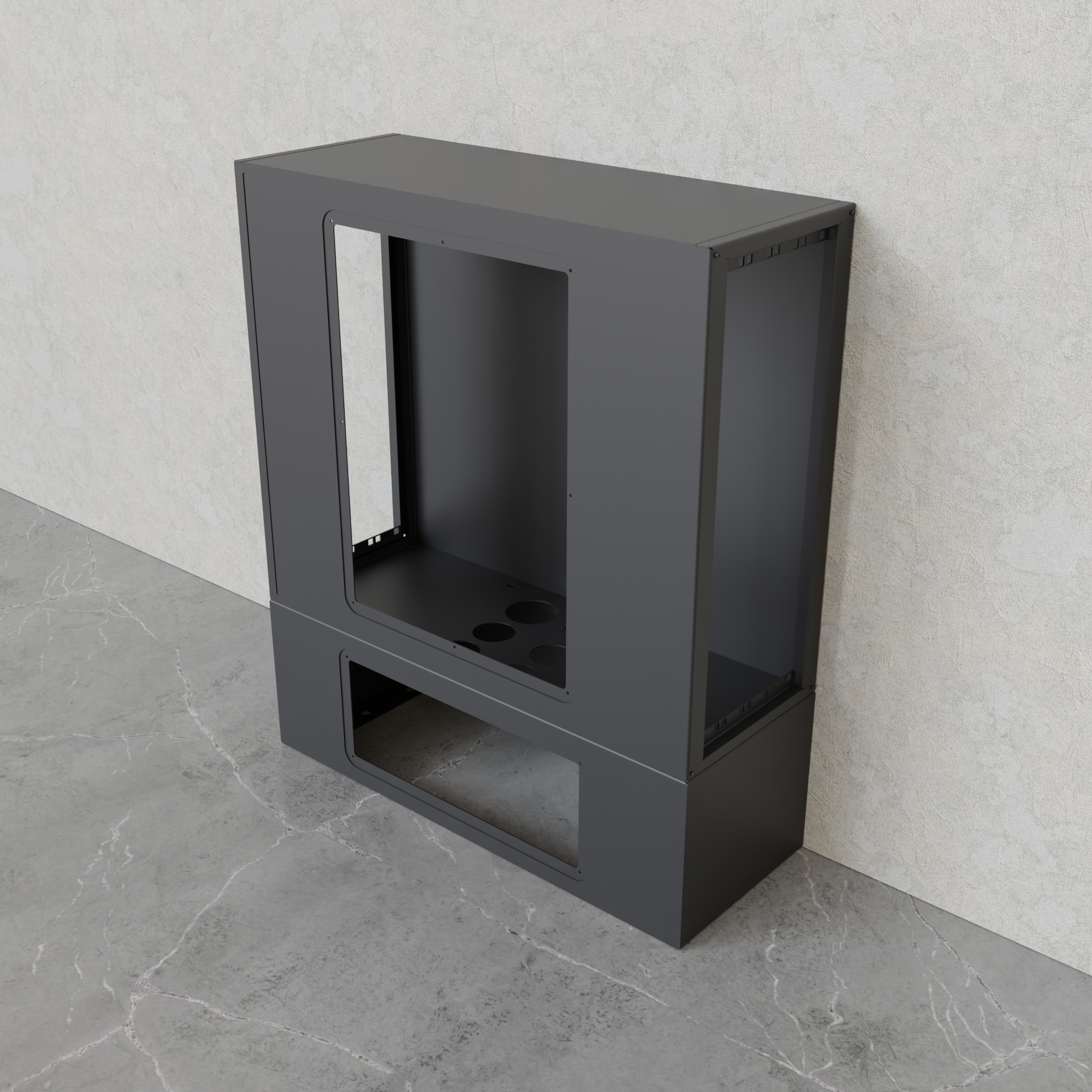

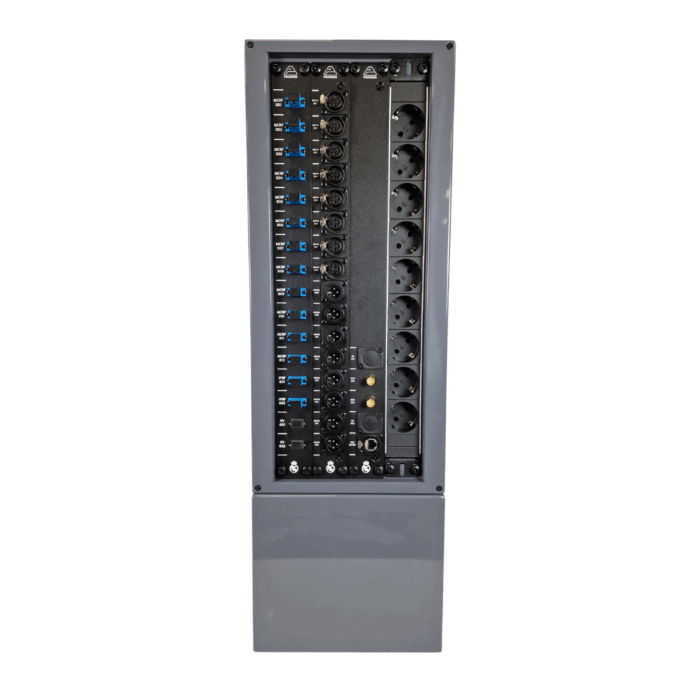

Surface box Wall Rack Vertical
Fully customizable product
We will need you to indicate the connectors you need in this type of product and we will return a graphic view and price.

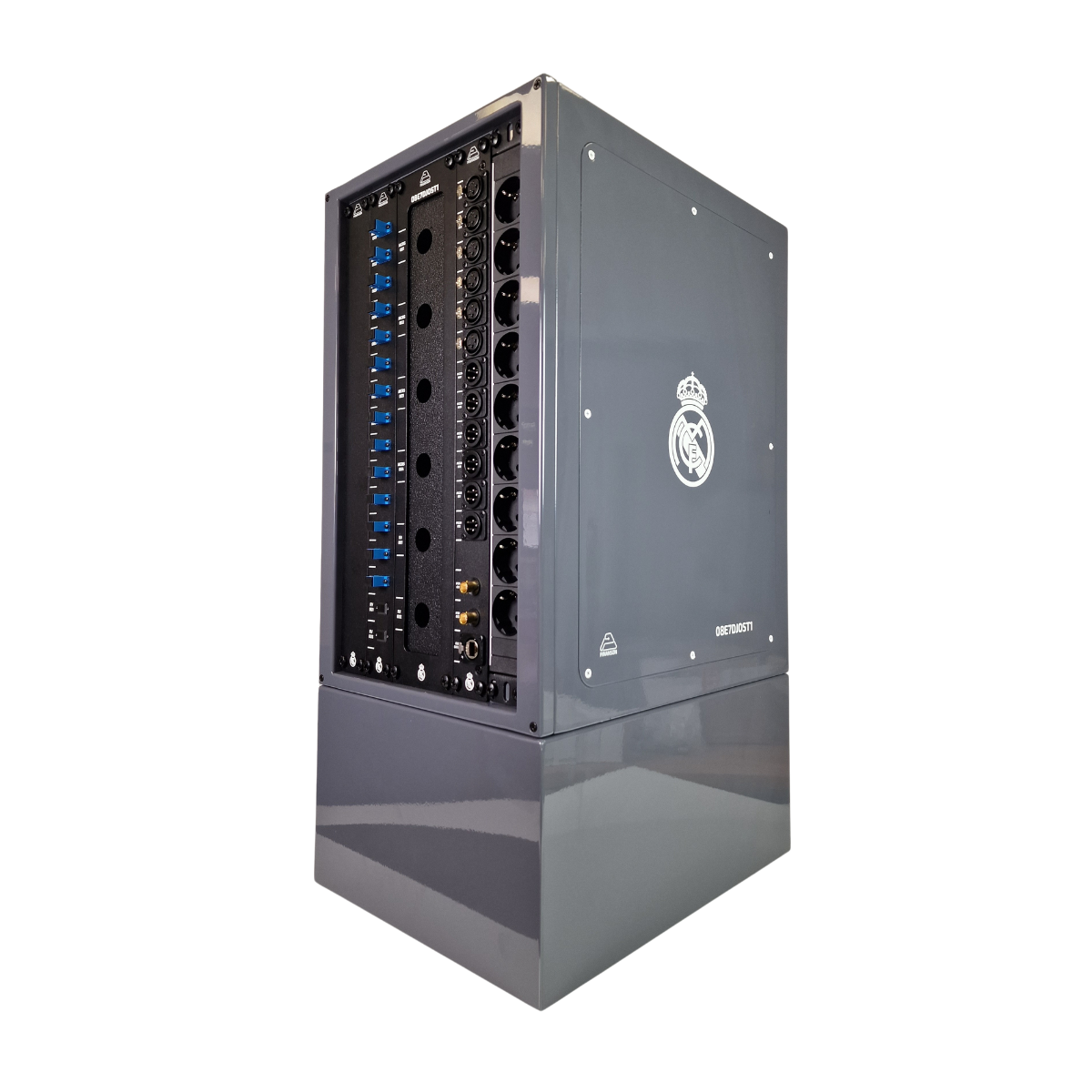

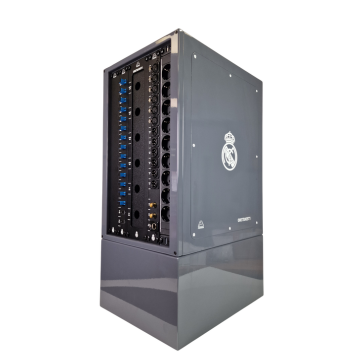

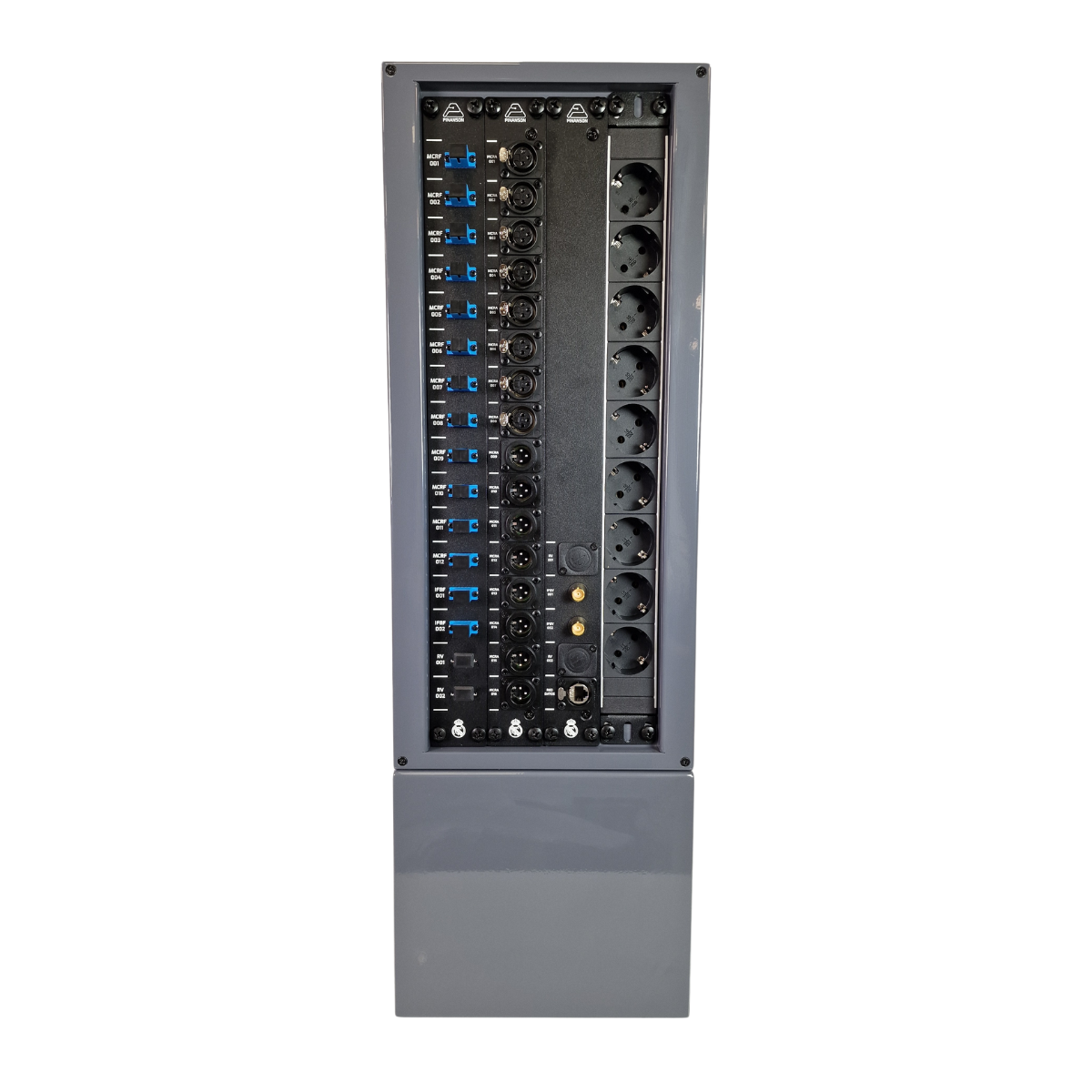

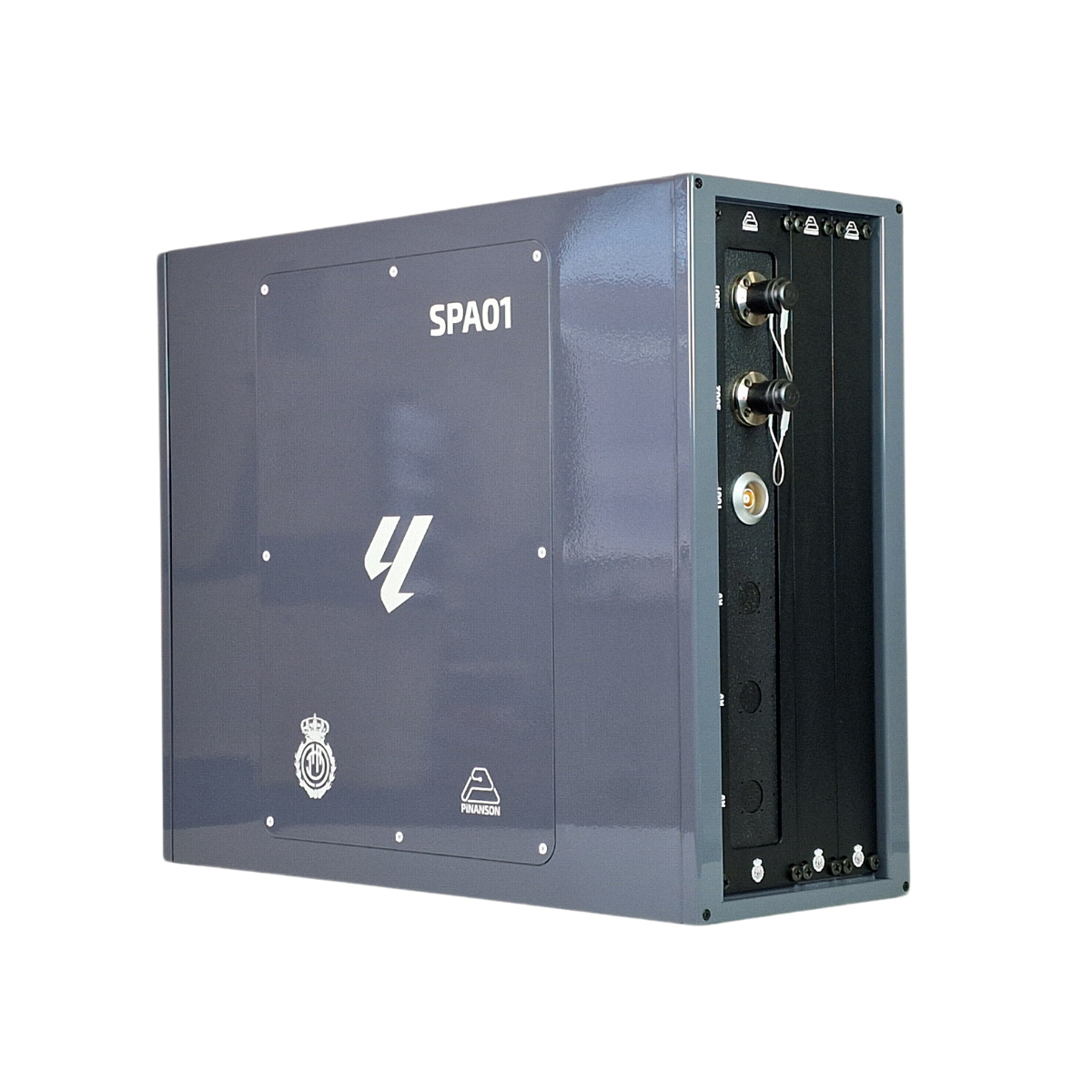

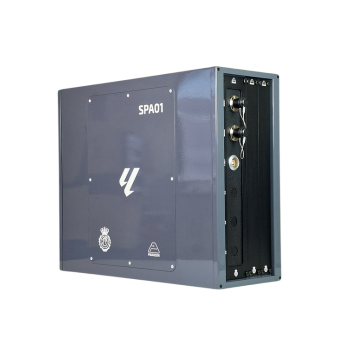

How we have customized this product for other clients
Product Description ES
| Nombre | Name | Caja WR Vertical | Box WR Vertical | |||
| Emplazamiento: | Position: | Superficie | Surface | |||
| Instalación: | Installation: | Atornillable a suelo sobre peana | Screwing onto a stand to the floor | |||
| Conexión: | Connection: | Perpendicular superficie | Perpendicular to the surface | |||
| Material: | Material: | Caja y Tapa Caja: | Box & Box cover: | Acero 1,5mm | Steel 1,5mm | |
| Solapas | Flaps | Acero 1,5mm | Steel 1,5mm | |||
| Peana y Tapa Peana | Stand & Stand cover: | Acero 1,5mm | Steel 1,5mm | |||
| Panel de conexiones: | Connection pannel: | Aluminio extrusionado | Extruded aluminium | |||
| Acabado: | Finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request. | |||
| Acrónimo: | Acronym: | WR Vertical | WR Vertical | |||
| Dimesiones mm (An X Al X F): | Dimmensions mm (W X H X D): | 4RU: 415 X 518 X 234 Peana: 200 ó 400 | 4RU: 415 X 518 X 234 Stand: 200 or 400 | |||
| 6RU: 415 X 518 X 323 Peana: 200 ó 400 | 6RU: 415 X 518 X 323 Stand: 200 or 400 | |||||
| 4RU+4RU: 615 X 518 X 234 Peana: 200 ó 400 | 4RU+4RU: 615 X 518 X 234 Stand: 200 or 400 |
