| AES/EBU, AES 3ID audio splitter for isolated and active distributing of 1 input channel with isolation and equalization. | |
| Transformer | Digital (SDA AES/EBU one) |
| Place | Portable or Rack screw mounting. |
| Format | Box MF or AR 19” |
| Manufactured | In Spain by Pinanson S.L. |

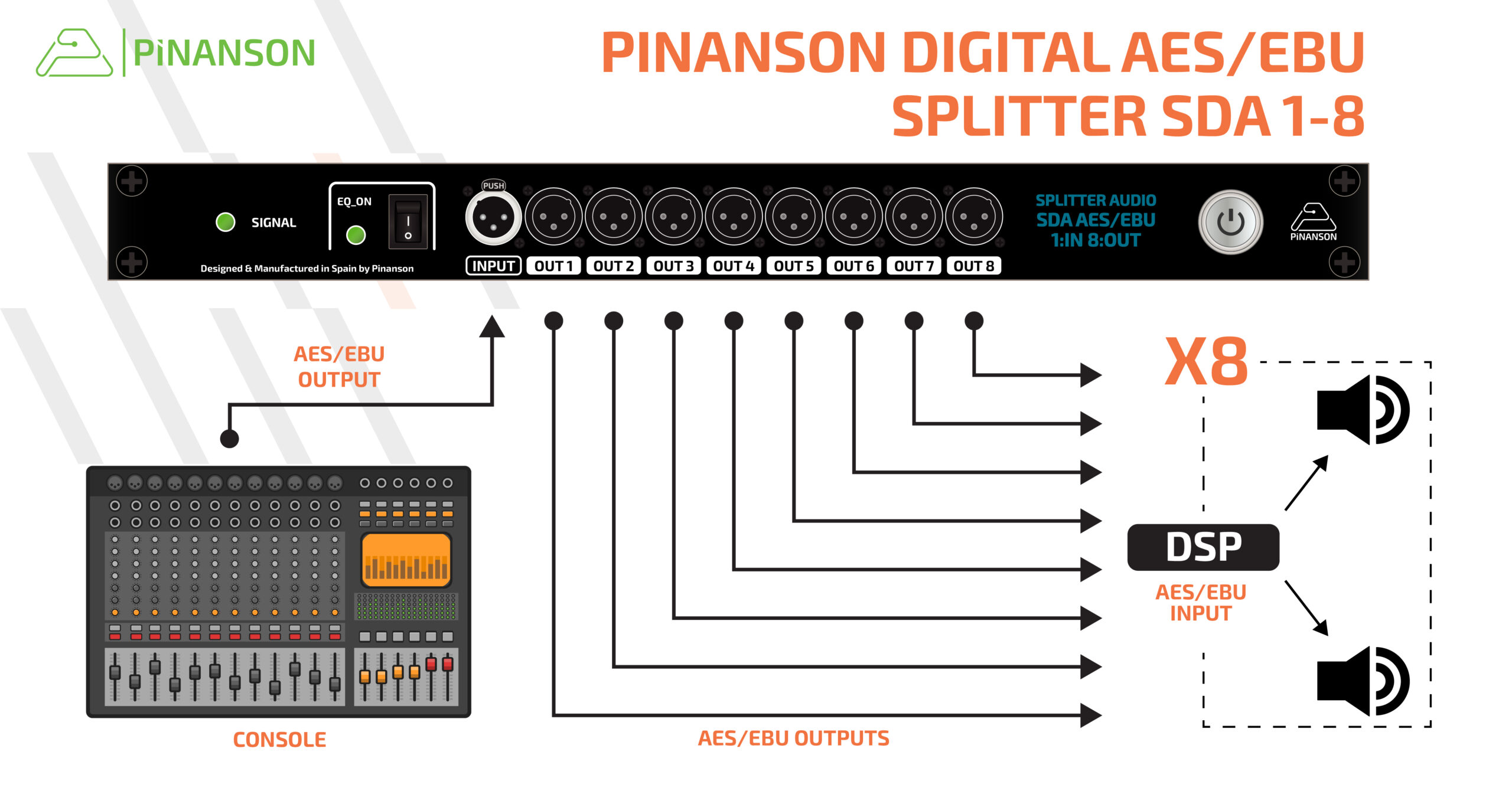

Splitter digital audio SDA
Remember, we can customize all our products to suit every need.
How we have customized this product for other clients
SDA digital audio splitter for Vive Radio (Spain)
SDA digital audio splitter with input and outputs on the back of the box.
| Acrónimo: | Abbreviation: | SDA AES/EBU | SDA AES/EBU |
| Tipo de Señal: | Signal: | Audio Digital. AES/EBU | Digital audio. AES/EBU |
| Distribución: | Distribution: | Activa | Active |
| Aislamiento: | Isolation: | Por transformador. Por cada salida. | By transformer. Each output. |
| Nº Entradas: | No. Inputs | 1 Balanceada XLR-H | 1 Balanced XLR-F |
| Nº Salidas: | No. Outputs | 8 Balanceadas XLR-M | 8 Balanced XLR-M |
| Ecualización: | Equalization: | Sí. | Yes. |
| Indicadores: | Indicators: | De presencia de señal y EQ ON | Of signal presence and EQ ON |
| Formato: | Format: | Caja MF (portátil) y Caja AR (enrackable) | MF box (portable) and AR box (rack mount) |
| Acrónimo: | Abbreviation: | SDA AES 3ID | SDA AES 3ID |
| Tipo de Señal: | Signal: | Audio Digital. AES 3ID | Digital audio. AES 3ID |
| Distribución: | Distribution: | Activa | Active |
| Nº Entradas: | No. Inputs | 1 Desbalanceada BNC | 1 Unbalanced BNC |
| Nº Salidas: | No. Outputs | 10 Desbalanceadas BNC | 10 Unbalanced BNC |
| Ecualización: | Equalization: | Sí. | Yes. |
| Indicadores: | Indicators: | De presencia de señal y EQ ON | Of signal presence and EQ ON |
| Formato: | Format: | Caja MF (portátil) y Caja AR (enrackable) | MF box (portable) and AR box (rack mount) |
MF BOX
| Nombre | Name | Caja MF A | Box MF A | ||
| Emplazamiento: | Position: | Superficies | Surfaces | ||
| Instalacion: | Installation: | Móvil | Mobile | ||
| Conexión: | Connection: | Perpendicular superficie | Perpendicular to the surface | ||
| Material: | Material: | Caja: | Box: | Aluminio extrusionado | Extruded aluminium |
| Piezas de unión | Union parts | Aluminio 3mm | Aluminum 3mm | ||
| Acabado: | Finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request. | ||
| Acrónimo: | Acronym: | CAM A | CAM A | ||
| Dimesiones mm (An X Al X F): | Dimmensions mm (W X H X D): | CAM A (Depende de la configuración X 115 X 45) | CAM A (Depends on the configuration X 115 X 45) | ||
| CAMG A (Depende de la configuración X 143 X 47) | CAMG A (Depends on the configuration X 143 X 47) |
| Nombre: | Name: | Caja AR 19" | Box AR 19" | ||
| Emplazamiento: | Position: | Atornillable en Rack | Rack screw mounting | ||
| Conexión: | Connection: | Perpendicular al rack | Perpendicular to the rack | ||
| Material | Material | Panel frontal: | Frontal Panel: | Aluminio extrusionado | Extruded aluminium |
| Panel trasero: | Rear Panel: | Aluminio extrusionado | Extruded aluminium | ||
| Piezas de unión | Union parts | Aluminum 3mm y/o Acero al carbono 1,5mm | Aluminio 3mm and/or Carbon steel 1,5mm | ||
| Acabado: | Finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request | ||
| Dimesiones mm (An X Al): | Dimmensions mm (W X H): | 1RU (483 X 44,5) | 1RU (483 X 44,5) | ||
| 2RU (483 X 89) | 2RU (483 X 89) | ||||
| 3RU (483 X 133,5) | 3RU (483 X 133,5) | ||||
| 4RU (483 X 177,8) | 4RU (483 X 177,8) | ||||
| 6RU (483 X 265,9) | 6RU (483 X 265,9) | ||||
| Dimesiones mm (F): | Dimmensions mm (D): | UNI (44) | UNI (44) | ||
| AR1 (91) | AR1 (91) | ||||
| MAM (210) | MAM (210) |
