Rack mount box for power DIN modules

19″ rack box from 1RU to 6RU for installing standard DIN rail power modules, extruded aluminium front and rear panels.

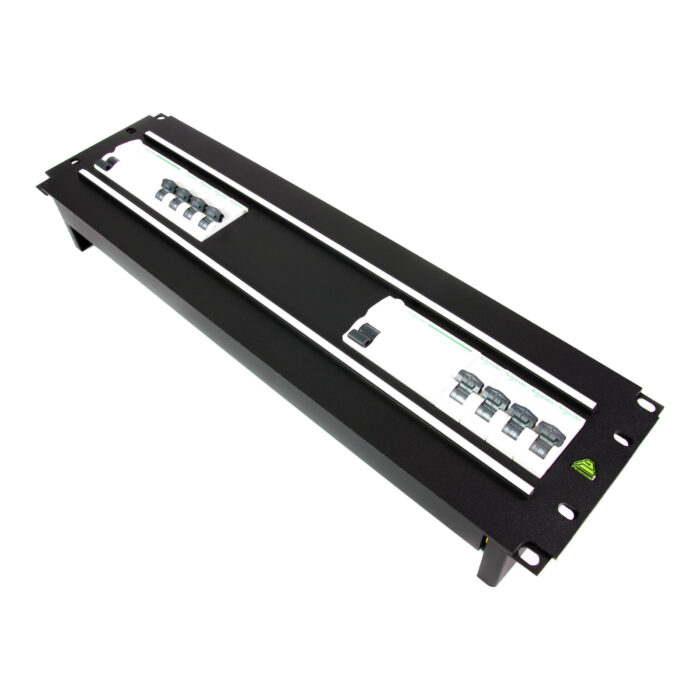

3U rack box for DIN rail devices: breakers, RCD and 2 Schuko sockets
Location
Rack screw mounting
Format
19″ AR box
Manufactured
In Spain by Pinanson S.L.

Technical data

Specifications

Material and finish

Material · Front panel
Extruded aluminium
Material · Rear Panel
Extruded aluminium
Material · Union parts
Aluminium 3 mm and/or carbon steel 1.5 mm
Finish
Electrostatic powder coating 100-150 µm. Colour and direct print with text, logos, etc. on request

Other data

Position
Rack screw mounting
Connection
Perpendicular to the rack
Format
Box AR 19"

Dimensions and weight

Dimensions mm (W X H)
1RU (483 × 44,5)
Dimensions mm (W X H)
2RU (483 × 89)
Dimensions mm (W X H)
3RU (483 × 133,5)
Dimensions mm (W X H)
4RU (483 × 177,8)
Dimensions mm (W X H)
6RU (483 × 265,9)
Dimensions mm (D)
UNI (44)
Dimensions mm (D)
AR1 (91)
Dimensions mm (D)
MAM (210)
