| Box with connectors for connecting any type of signal. | |
| Features | For floors with depth restriction (from 45mm). |
| Connectors | With the necessary connectors in each case. |
| Place | Built-in floor |
| Format | Box CUBOID INS |
| Regulations | Complies with EN60670-1 and EN60670-23 standards according to low voltage directive 2014/35/EU |
| Manufactured | In Spain by Pinanson S.L. |

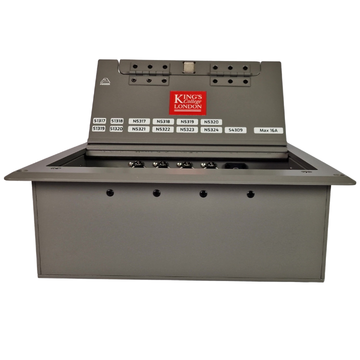

Floor box CUBOID INS
Fully customizable product
We will need you to indicate the connectors you need in this type of product and we will return a graphic view and price.
How we have customized this product for other clients
University Carlos III Campus Puerta de Toledo, Madrid (Spain)
Floor box CUB INS with 2x RJ C6A FF, 2x XLR5F, 2x SCHUKO, 1x XLR3F y 1x XLR3M
Institute of education Doha (Qatar)
Special desing due to its application: the connection of the equipment is carried out vertically in the area of the cover, in this way the signals of a mobile equipment rack are connected, being able to disconnect when it is necessary to move the rack.
University Complutense (Madrid)
Box for CAT6A network connection and power. Adapted to the holes of the previous boxes to be replaced. Finished in colour, following the design of the room.
Radio Televisión Española (Spain)
Floor Box CUB INS with 1 XLR3F, 1 XLR3M, 1 RJ Cat 6A FF, 1 TRIAX, 1 Schuko and 1 BNC.
Product Description ES
| Nombre: | Name: | Caja CUBOID INS | Box CUBOID INS | ||
| Emplazamiento: | Position: | Suelo | Floor | ||
| Instalacion: | Installation: | Encastrable | Buit-in | ||
| Conexión: | Connection: | Paralela suelo | Paralell to the floor | ||
| Material: | Material: | Solapa: | Flap: | Plancha aluminio 6mm | 6mm aluminum plate |
| Puerta: | Door: | Plancha aluminio 6mm | 6mm aluminum plate | ||
| Eje de puerta: | Door axis: | Acero inoxidable | Inox steel | ||
| Soporte de Eje: | Axis support: | Latón Niquelado | Nickel-plated brass | ||
| Bisagras salida cables: | Cable exit hinges: | Acero inoxidable | Inox steel | ||
| Panel Frontal y Trasero: | Frontal and rear panel: | Aluminio extrusionado | Extruded aluminium | ||
| Panel de conexiones: | Connection pannel: | Aluminio extrusionado | Extruded aluminium | ||
| Placas de unión: | Union laterals: | Plancha aluminio | Aluminum plate | ||
| Acabado: | Finish: | Acabado exterior: | Outside finish: | Recubrimiento electroestático en polvo 100-150 µ. Color bajo petición. | Powder electrostatic covering 100-150 μ. |
| Acabado interior: | Inside finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour on request. Direct print with text, logos, etc. on request. | ||
| Carga máxima soportada (Mediante ensayo de compresión a 20 ± 3° C, 10mm/min): | Maximum supported Load (By compression test at 20 ± 3° C, 10 mm/min): | 5.420 N | 5.420 N | ||
| Acrónimo: | Acronym: | CUB INS | CUB INS | ||
| Dimesiones mm (An X Al X F): | Dimmensions mm (W X H X D): | 1UM (287 X 293 X 47,5) | 1UM (287 X 293 X 47,5) | ||
| 1UMM (144 X 293 X 47,5) | 1UMM (144 X 293 X 47,5) | ||||
| 2UM (287 X 293 X 92) | 2UM (287 X 293 X 92) | ||||
| 2UMM (144 X 293 X 92) | 2UMM (144 X 293 X 92) |
