Line level volume controller

100,16772,19

Line level stereo audio volume controller
Place Surfaces screw mounting
Format Box MF, Box AR 19″
Manufactured In Spain by Pinanson S.L.
100,16772,19
Channels 1 Channel 2 Channels 4 Channels
Format Box AR 19" Box MF
Clear selection
    • (max file size 20 MB)

    If you prefer we can print your corporate logo on this product.

SKU: 3003 Category:
  • Line level stereo audio volume controller
  • Inputs and outputs with XLR-3 connectors
  • Tandem potentiometers
  • Passive volume control (no power required)



MF BOX

NombreNameCaja MF SBox MF S
Emplazamiento:Position:SuperficiesSurfaces
Instalacion:Installation:AtornillableScrew mounting
Conexión:Connection:Perpendicular o paralelo a la superficie (conectores en las tapas laterales)Perpendicular or parallel to the surface (connectors on the lateral lids)
Material:Material:Caja:Box:Aluminio extrusionadoExtruded aluminium
Piezas de uniónUnion partsAcero 1,5mmSteel 1,5mm
Acabado:Finish:Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc.Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request.
Acrónimo:Acronym:CAM SCAM S
Dimesiones mm (An X Al X F):Dimmensions mm (W X H X D):CAM S (Depende de la configuración X 115 X 45)CAM S (Depends on configuration X 115 X 45)
CAMG S (Depende de la configuración X 143 X 47)CAMG S (Depends on configuration X 143 X 47)

AR 19″ BOX
Nombre:Name:Caja AR 19"Box AR 19"
Emplazamiento:Position:Atornillable en RackRack screw mounting
Conexión:Connection:Perpendicular al rackPerpendicular to the rack
MaterialMaterialPanel frontal:Frontal Panel:Aluminio extrusionadoExtruded aluminium
Panel trasero:Rear Panel:Aluminio extrusionadoExtruded aluminium
Piezas de uniónUnion partsAluminum 3mm y/o Acero al carbono 1,5mmAluminio 3mm and/or Carbon steel 1,5mm
Acabado:Finish:Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc.Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request
Dimesiones mm (An X Al):Dimmensions mm (W X H):1RU (483 X 44,5)1RU (483 X 44,5)
2RU (483 X 89)2RU (483 X 89)
3RU (483 X 133,5)3RU (483 X 133,5)
4RU (483 X 177,8)4RU (483 X 177,8)
6RU (483 X 265,9)6RU (483 X 265,9)
Dimesiones mm (F):Dimmensions mm (D):UNI (44)UNI (44)
UNI LONG (91)UNI LONG (91)
UNI MAM (210)UNI MAM (210)
Channels

, ,

Format

,

SKU PTR6394
Channels: 4 Channels
Format: Box AR 19"


Width: 483 mm
Height: 44.5 mm
Depth: 51 mm

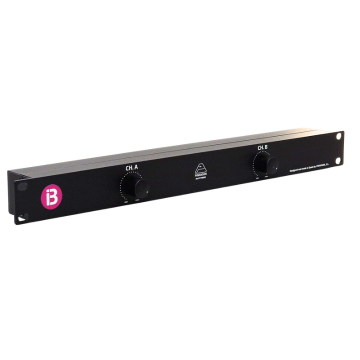

SKU PT19090
Channels: 2 Channels
Format: Box AR 19"


Width: 483 mm
Height: 44.5 mm
Depth: 51 mm

Information Sheet PDF Download
