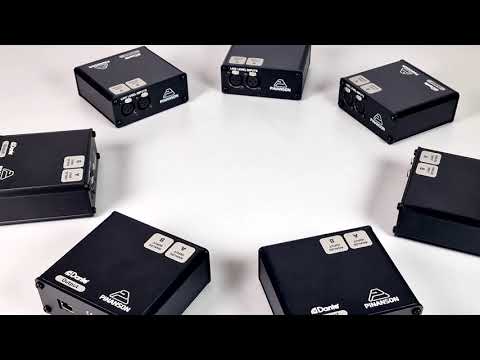

Dante Box
| Dante network Digital audio Adaptor for conversion of 2 Dante signals into 2 line level analogue signals and vice versa. | |
| Place | Portable. |
| Format | Box MF |
| Manufactured | In Spain by Pinanson S.L. |
Download available technical data here
Some options
Input* 2 XLRFDante (RJ45)
Output* Dante (RJ45)2 XLRM
| Input Signal: | Dante network digital audio |
| 44.1KHz, 48 KHz y 96 KHz | |
| 24 bits. 100 Mbps | |
| No. Inputs: | 2 Dante signals |
| Input Connector: | 1 RJ45 CAT.5E |
| Output Signal: | Analogue audio |
| Line level +4 dBu | |
| No. Outputs: | 2 balanced audio signals. Line level. |
| Output Connectors: | 2 XLR-M |
| Power: | PoE Class 1 802,3af POE PD |
| Format: | MF box |
| Input Signal: | Analogue audio |
| Line level +4 dBu | |
| No. Inputs: | 2 balanced audio signals. Line level. |
| Input Connector: | 2 XLR-F |
| Output Signal: | Dante network digital audio |
| 44.1KHz, 48 KHz y 96 KHz | |
| 24 bits. 100 Mbps | |
| No. Outputs: | 2 Dante signals |
| Output Connectors: | 1 RJ45 CAT.5E |
| Power: | PoE Class 1 802,3af POE PD |
| Format: | MF box |
| Name | Box MF A | |
| Position: | Surfaces | |
| Installation: | Mobile | |
| Connection: | Perpendicular to the surface | |
| Material: | Box: | Extruded aluminium |
| Union parts | Aluminum 3mm | |
| Finish: | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request. | |
| Acronym: | CAM A | |
| Dimensions mm (W X H X D): | CAM A (Depends on the configuration X 115 X 45) | |
| CAMG A (Depends on the configuration X 143 X 47) |
