SA SMC DANTE

Press splitter with Dante network audio signal input in addition to line level analogue audio.
Features	Switch to choose Dante or analogue audio input. Gain control per group. Transformer-isolated outputs.
Outputs	Up to 32 XLRM
Transformer	Lundahl
Place	Rack screw mounting
Format	AR Box 19'' or Flight Case (Briefcase)
Manufactured	In Spain by Pinanson S.L.

Spanish Government

24-output active press splitter with Dante network audio input as well as line-level analogue audio. AR (19" rack) format.

Wanda Metropolitano (Spain)

16-output active press splitter with Dante network audio input as well as line-level analogue audio. Rack mount box 19" format.

Europa Experience

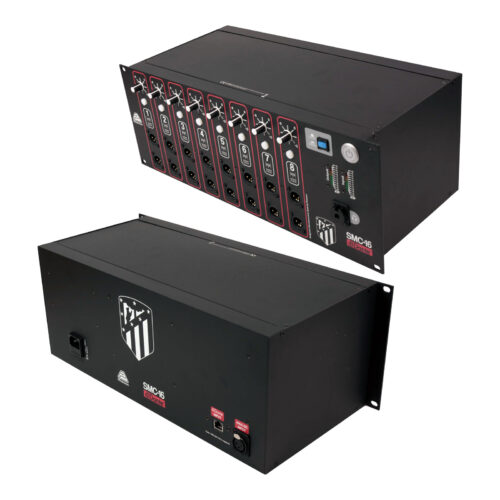

16-output active press splitter with Dante network audio input as well as line-level analogue audio. Flight case (briefcase) format.

Milano Convention Center (Italy)

24-output active press splitter with Dante network audio input as well as line-level analogue audio. Flight case (briefcase) format.

Abbreviation:	SMC DANTE
Input Signal:	Line level analogue audio/Dante signal
Distribution:	Active
Isolation:	By transformer. Each channel.
No. Input:	1 Balanced XLR-F. Line Level/1 Dante signal RJ45
Output link:	1 Balanced XLR-M. Line Level.
No. Outputs:	16, 24 or 32. Balanced XLR-M. Line level.
Output gain:	Each group with potentiometer up to +6 dB.
Monitoring:	Visual (by LED) of Input and Output (per group)signals/LEDs RJ45
Frequency response:	± 0.1 dB (+4 dBu, 20Hz-20KHz)
THD+N:	≤ 0.01% (+4 dBu, 1KHz)
CMRR:	> 100 dB (+4 dBu, 1KHz)
Format:	Fly case (Brief case), Wall Rack or Rack mount box

Sample rate	44,1 KHz, 48 KHz y 96 KHz
Bit depth	24 bits
Network speed	100 Mbps
Power	PoE (Power over Ethernet) Class 1 802.3af POE PD compliant

BOX AR FORMAT

Name:		Box AR 19"
Position:		Rack screw mounting
Connection:		Perpendicular to the rack
Material	Frontal Panel:	Extruded aluminium
	Rear Panel:	Extruded aluminium
	Union parts	Aluminio 3mm and/or Carbon steel 1,5mm
Finish:		Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request
Dimensions mm (W X H):		1RU (483 X 44,5)
		2RU (483 X 89)
		3RU (483 X 133,5)
		4RU (483 X 177,8)
		6RU (483 X 265,9)
Dimensions mm (D):		UNI (44)
		AR1 (91)
		MAM (210)

FLIGHT CASE FORMAT (Briefcase)

Name:		Flight case (Briefcase)
Position:		Surfaces
Installation:		Mobile
Material:	Hinges and locking:	Galvanized sheet
	Handle:	Plastic
	Corners:	Plastic (MOD: ALUM) or Galvanized sheet (MOD: ALUM-W 2015)
	Frames:	Aluminium
	Foot:	Rubber
	Surface:	Plywood and exterior face covered with 4mm (MOD: ALUM) or 6mm PVC (MOD: ALUM-W 2015)
	Inner coating:	Foam 5mm (ALUM-W 2015)
	Connection panel:	Extruded aluminium
Finish:	Inside finish:	Powder electrostatic covering 100-150 μ. Colour on request. Direct print with text, logos, etc. on request.
Acronym:		M
