| Line level audio Splitter for active distribution. | |
| Features | Input signal monitoring. Individual gain control per each output. |
| Outputs | 16 XLRM |
| Place | Portable, Rack screw mounting or surfaces screw mounting. |
| Format | Flight case (Briefcase), Box AR 19” or Box WR |
| Manufactured | In Spain by Pinanson S.L. |
Press Splitter SAI 16
Remember, we can customize all our products to suit every need.
| Acrónimo: | Abbreviation: | SAI | SAI |
| Tipo de Señal: | Signal: | Audio nivel línea | Line level audio |
| Distribución: | Distribution: | Activa | Active |
| Nº Entradas: | No. Input: | 1 Balanceada XLR-H. Nivel Línea. | 1 Balanced XLR-F. Line Level. |
| Salida Link: | Output link: | 1 Balanceada XLR-M. Nivel Línea. | 1 Balanced XLR-M. Line Level. |
| Nº Salidas: | No. Outputs: | 16 Balanceadas XLR-M. Nivel Línea. | 16 Balanced XLR-M. Line level. |
| Ganancia de Salida: | Output gain: | Por salida con potenciómetro hasta +6 dB. | Each output with potenciometer up to +6 dB. |
| Monitorado | Monitoring: | Visual (por LED) de señal de entrada. | Visual (by LED) of input signal. |
| Respuesta en Frecuencia: | Frequency response: | ± 0.2 dB (+4 dBu, 20Hz-20KHz) | ± 0.2 dB (+4 dBu, 20Hz-20KHz) |
| THD+N: | THD+N: | ≤ 0.01% (+4 dBu, 1KHz) | ≤ 0.01% (+4 dBu, 1KHz) |
| CMRR: | CMRR: | > 70 dB (+4 dBu, 1KHz) | > 70 dB (+4 dBu, 1KHz) |
| Formato: | Format: | Fly case (Maletín), Wall Rack o Caja Enrackable | Fly case (Brief case), Wall Rack or Rack mount box |

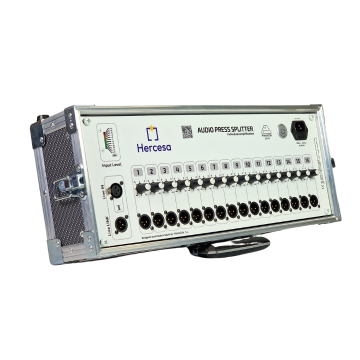

FLIGHT CASE (Briefcase)
| Nombre: | Name: | Flight case (Maletín) | Flight case (Briefcase) | ||
| Emplazamiento: | Position: | Superficies | Surfaces | ||
| Instalacion: | Installation: | Móvil | Mobile | ||
| Material: | Material: | Bisagras y cierre: | Hinges and locking: | Chapa cincada | Galvanized sheet |
| Asa: | Handle: | Plástico | Plastic | ||
| Cantoneras: | Corners: | Plástico (MOD: ALUM) o Chapa cincada (MOD: ALUM-W 2015) | Plastic (MOD: ALUM) or Galvanized sheet (MOD: ALUM-W 2015) | ||
| Perfilería: | Frames: | Aluminio | Aluminium | ||
| Patas: | Foot: | Goma | Rubber | ||
| Superfice: | Surface: | Madera contrachapada y cara exterior recubierta de pvc de 4mm (MOD: ALUM) ó 6mm (MOD: ALUM-W 2015) | Plywood and exterior face covered with 4mm (MOD: ALUM) or 6mm PVC (MOD: ALUM-W 2015) | ||
| Revestimiento interno: | Inner coating: | Foam 5mm (ALUM-W 2015) | Foam 5mm (ALUM-W 2015) | ||
| Panel de conexiones: | Connection pannel: | Aluminio extrusionado | Extruded aluminium | ||
| Acabado: | Finish: | Acabado interior: | Inside finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour on request. Direct print with text, logos, etc. on request. |
| Acrónimo: | Acronym: | M | M |
AR BOX
| Nombre: | Name: | Caja AR 19" | Box AR 19" | ||
| Emplazamiento: | Position: | Atornillable en Rack | Rack screw mounting | ||
| Conexión: | Connection: | Perpendicular al rack | Perpendicular to the rack | ||
| Material | Material | Panel frontal: | Frontal Panel: | Aluminio extrusionado | Extruded aluminium |
| Panel trasero: | Rear Panel: | Aluminio extrusionado | Extruded aluminium | ||
| Piezas de unión | Union parts | Aluminum 3mm y/o Acero al carbono 1,5mm | Aluminio 3mm and/or Carbon steel 1,5mm | ||
| Acabado: | Finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request | ||
| Dimesiones mm (An X Al): | Dimmensions mm (W X H): | 1RU (483 X 44,5) | 1RU (483 X 44,5) | ||
| 2RU (483 X 89) | 2RU (483 X 89) | ||||
| 3RU (483 X 133,5) | 3RU (483 X 133,5) | ||||
| 4RU (483 X 177,8) | 4RU (483 X 177,8) | ||||
| 6RU (483 X 265,9) | 6RU (483 X 265,9) | ||||
| Dimesiones mm (F): | Dimmensions mm (D): | UNI (44) | UNI (44) | ||
| AR1 (91) | AR1 (91) | ||||
| MAM (210) | MAM (210) |
WR BOX
| Nombre | Name | Caja WR | Box WR | ||
| Emplazamiento: | Position: | Superficie | Surface | ||
| Instalación: | Installation: | Atornillable | Screw mounting | ||
| Conexión: | Connection: | Perpendicular superficie | Perpendicular to the surface | ||
| Material: | Material: | Solapa: | Flap: | Acero 1,5mm | Steel 1,5mm |
| Puerta: | Door: | ||||
| Caja: | Box: | Acero 1,5mm | Steel 1,5mm | ||
| Panel de conexiones: | Connection pannel: | Aluminio extrusionado | Extruded aluminium | ||
| Acabado: | Finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request. | ||
| Acrónimo: | Acronym: | WR | WR | ||
| Dimesiones mm (An X Al X F): | Dimmensions mm (W X H X D): | 2RUMM (137 X 146 X 100) | 2RUMM (137 X 146 X 100) | ||
| 2RUM (273 X 143 X 70/100) | 2RUM (273 X 143 X 70/100) | ||||
| 4RUM (273 X 300 X 70/100) | 4RUM (273 X 300 X 70/100) | ||||
| 6RUM (273 X 300 X 70/100) | 6RUM (273 X 300 X 70/100) | ||||
| 8RUM (273 X 389 X 70/100) | 8RUM (273 X 389 X 70/100) | ||||
| 2RU (515 X 143 X 70/100) | 2RU (515 X 143 X 70/100) | ||||
| 4RU (515 X 300 X 70/100) | 4RU (515 X 300 X 70/100) | ||||
| 6RU (515 X 300 X 70/100) | 6RU (515 X 300 X 70/100) | ||||
| 8RU (515 X 480 X 70/100) | 8RU (515 X 480 X 70/100) | ||||
| 10RU (515 X 480 X 70/100) | 10RU (515 X 480 X 70/100) | ||||
| 12RU (515 X 655 X 70/100) | 12RU (515 X 655 X 70/100) | ||||
| 14RU (515 X 655 X 70/100) | 14RU (515 X 655 X 70/100) |
