| Fibre Optic Patch Panel for termination or patching inputs and outputs with Fibre Optic connectors. | |
| Place | Rack screw mounting |
| Format | 19” with removable tray |
| Manufactured | In Spain by Pinanson S.L. |

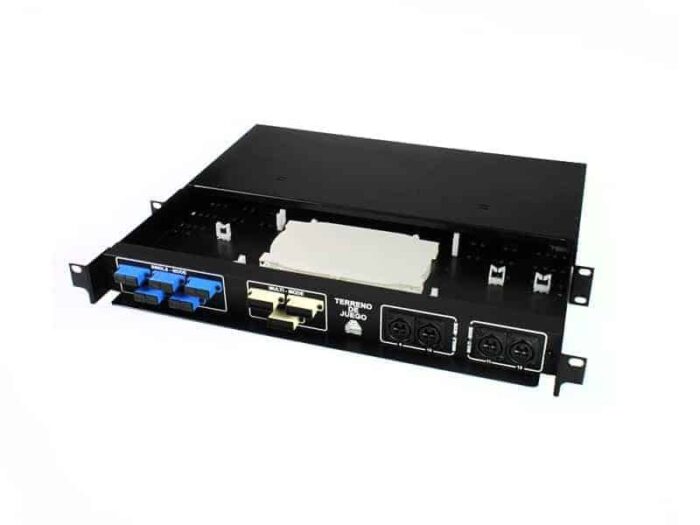

Patch panel fibre optics. Removable tray
Fully customizable product
We will need you to indicate the connectors you need in this type of product and we will return a graphic view and price.
| Nombre: | Name: | Patch panel Fibra óptica. Bandeja extraíble | Fiber optic patch panel. Removable tray | |||
| Emplazamiento: | Position: | Atornillable en Rack | Rack screw mounting | |||
| Conexión: | Connection: | Perpendicular al rack | Perpendicular to the rack | |||
| Material | Panel frontal: | Frontal Panel: | Aluminio extrusionado | Extruded aluminium | ||
| Caja distribuidora: | Tray: | Acero laminado en frío UNE 36086-91 | Cold rolled steel UNE 36086-91 | |||
| Conectores: | Connectors: | Conectores necesarios en cada instalación. | Needed connectors on installations. | |||
| Componentes incluidos: | Included components: | |||||
| 6 Guías para fibras | 6 fiber guides | |||||
| 1 Cassete de empalme para 24 fusiones | 1 splicing cassette for 24 fusions | |||||
| 2 Prensaestopas | 2 cable glands | |||||
| Acabado: | Finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request | |||
| Dimesiones mm (An X Al x F): | Dimmensions mm (W X H X D): | 483 X 44,45 X 250 | 484 X 44,45 X 250 |
