Patch panel fibre optics

215,82276,72

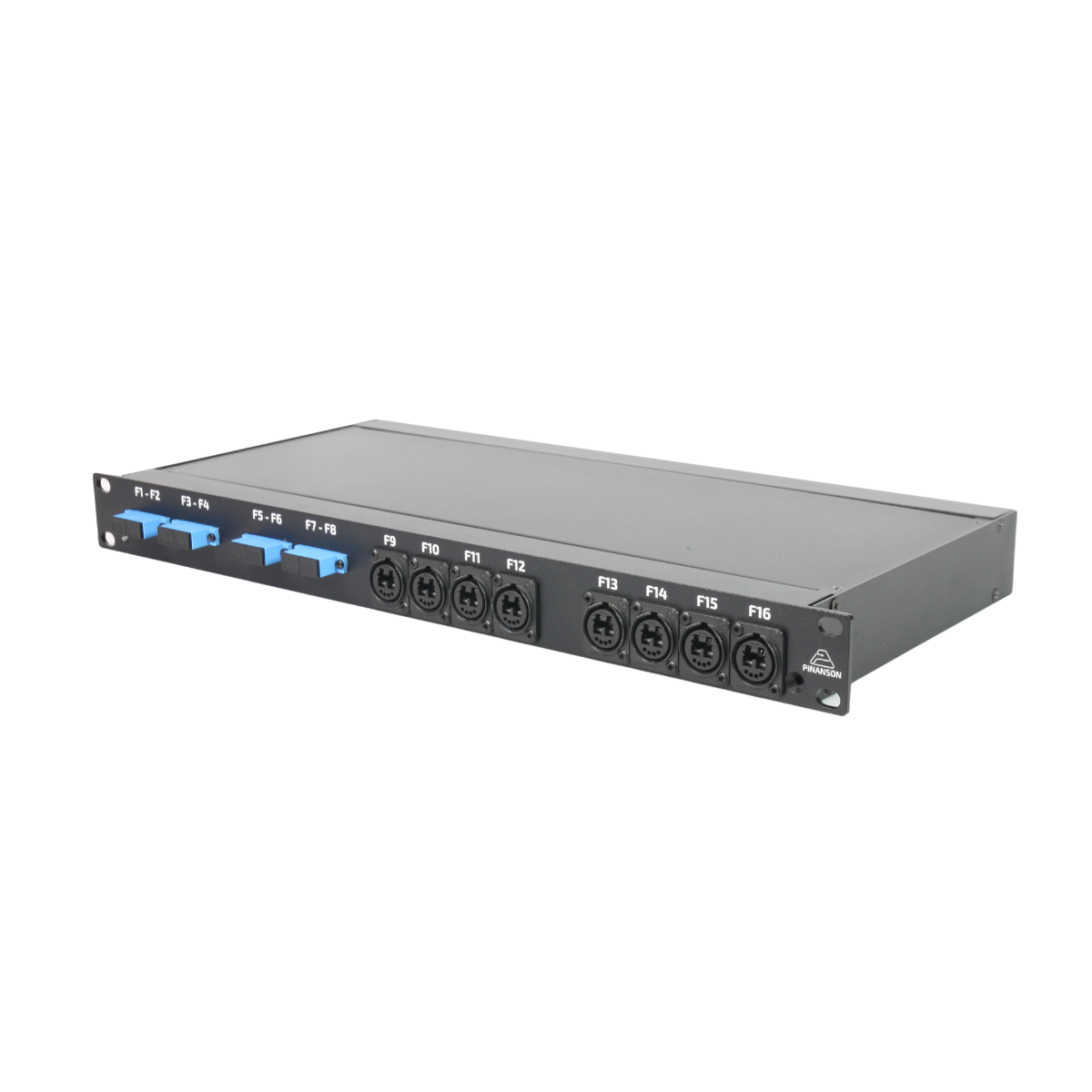

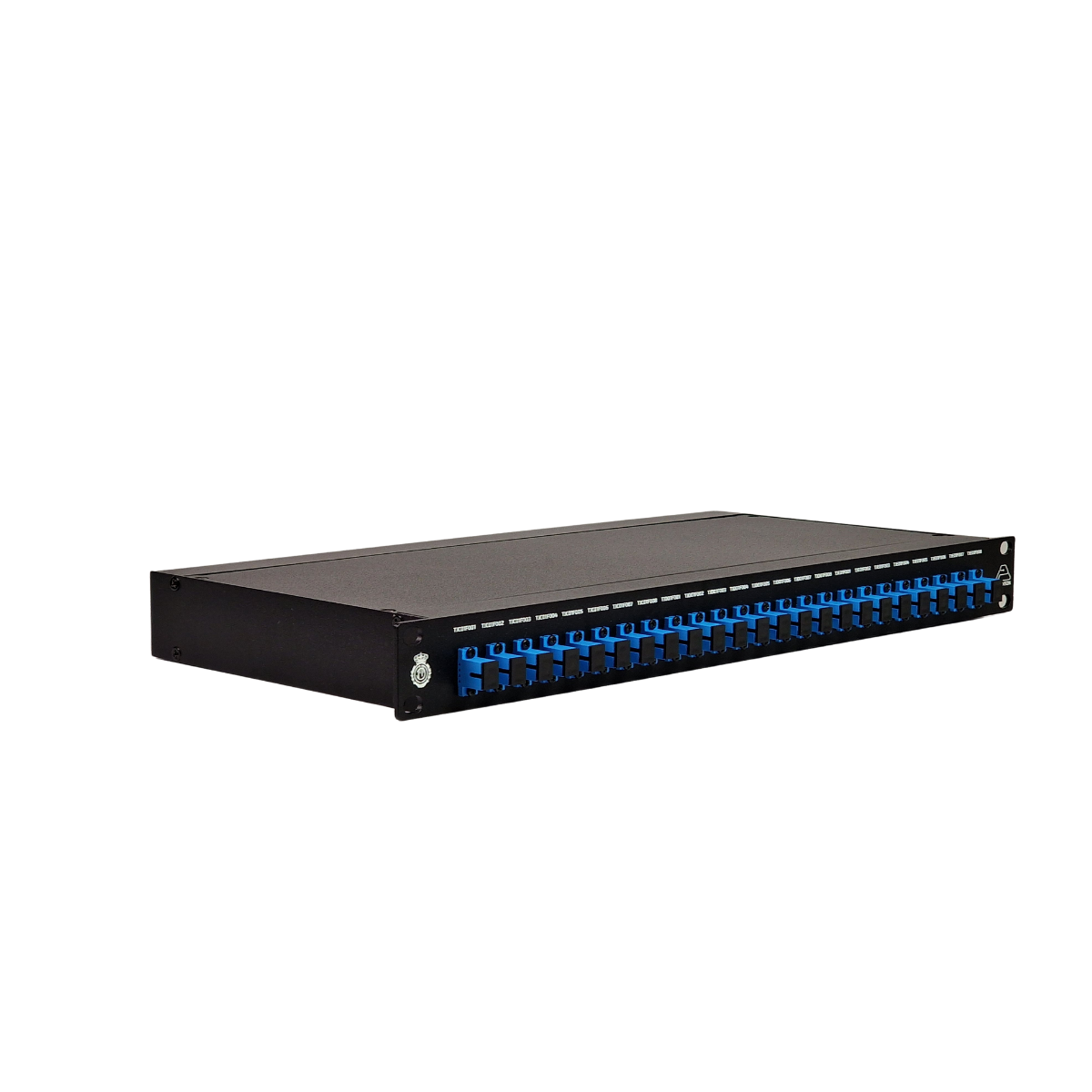

Fibre Optic Patch Panel for termination or patching inputs and outputs with Fibre Optic connectors.
Place Rack screw mounting
Format 19”
Manufactured In Spain by Pinanson S.L.
215,82276,72
Connectors 16 (1x16) 24 (1x24)
Type LC DUPLEX MM LC DUPLEX SM SC MM SC SM

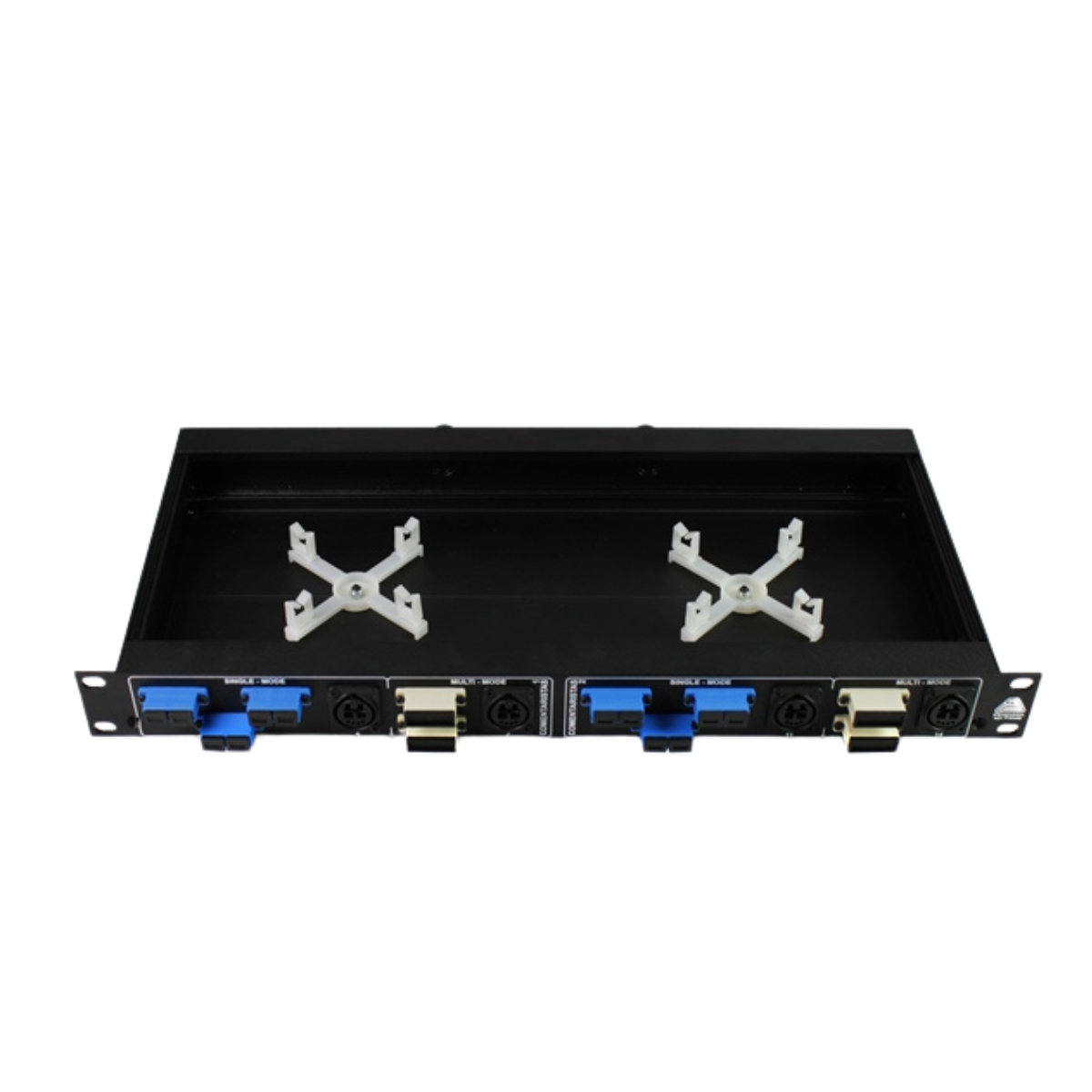

Tray Removable
Clear selection
    • (max file size 20 MB) 0 €

    If you prefer we can print your corporate logo on this product.

SKU: 3271 Categories: ,
Nombre:Name:Patch panel 19"Patch Panel 19"
Emplazamiento:Position:Atornillable en RackRack screw mounting
Conexión:Connection:Perpendicular al rackPerpendicular to the rack
Material:Material:PanelPanelAluminio extrusionadoExtruded aluminium
Porta-etiquetas:Label Frame:Aluminio extrusionado con etiqueta de poliésterExtruded aluminium with polyester label
Varilla sujeta-cables:Cable Lacing bar:Barra de acero F1 calibrado de diametro 8mm. Doblado en U de 65, 100 ó 150 mmCalibrated F1 steel bar diameter 8mm. U bent of 65, 100 or 150 mm
Acabado:Finish:Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc.Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request
Dimesiones mm (An X Al X F):Dimmensions mm (W X H X D):1RU (483 X 44,5 X 25,3 + Varilla sujeta-cables)1RU (483 X 44,5 X 25,3 + Lacing bar)
1RU + Porta-etiquetas (483 X 44 X 18,5 + Varilla sujeta-cables)1RU + Label Frame (483 X 44 X 18,5 + Lacing bar)
2RU (483 X 89 X 25,3 + Varilla sujeta-cables)2RU (483 X 89 X 25,3 + Lacing bar)
2RU + Porta-etiquetas (483 X 88,1 X 25,3 + Varilla sujeta-cables) 2RU + Label Frame (483 X 88,1 X 25,3 + Lacing bar)
3RU (483 X 133,5 X 25,3 + Varilla sujeta-cables)3RU (483 X 133,5 X 25,3 + Lacing bar)
4RU (483 X 177,8 X 25,3 + Varilla sujeta-cables)4RU (483 X 177,8 X 25,3 + Lacing bar)
6RU (483 X 265,9 X 25,3 + Varilla sujeta-cables)6RU (483 X 265,9 X 25,3 + Lacing bar)
Connectors

, ,

Type

, , , , ,

Tray

No, Removable
