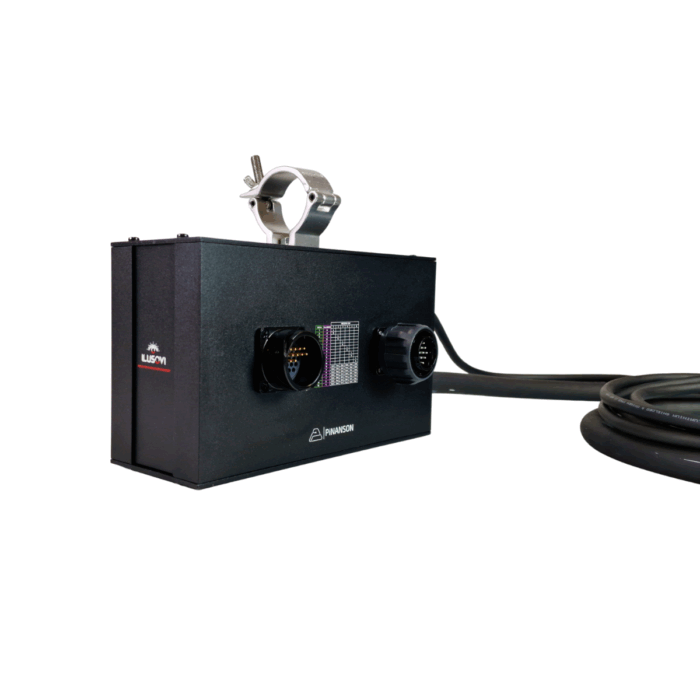

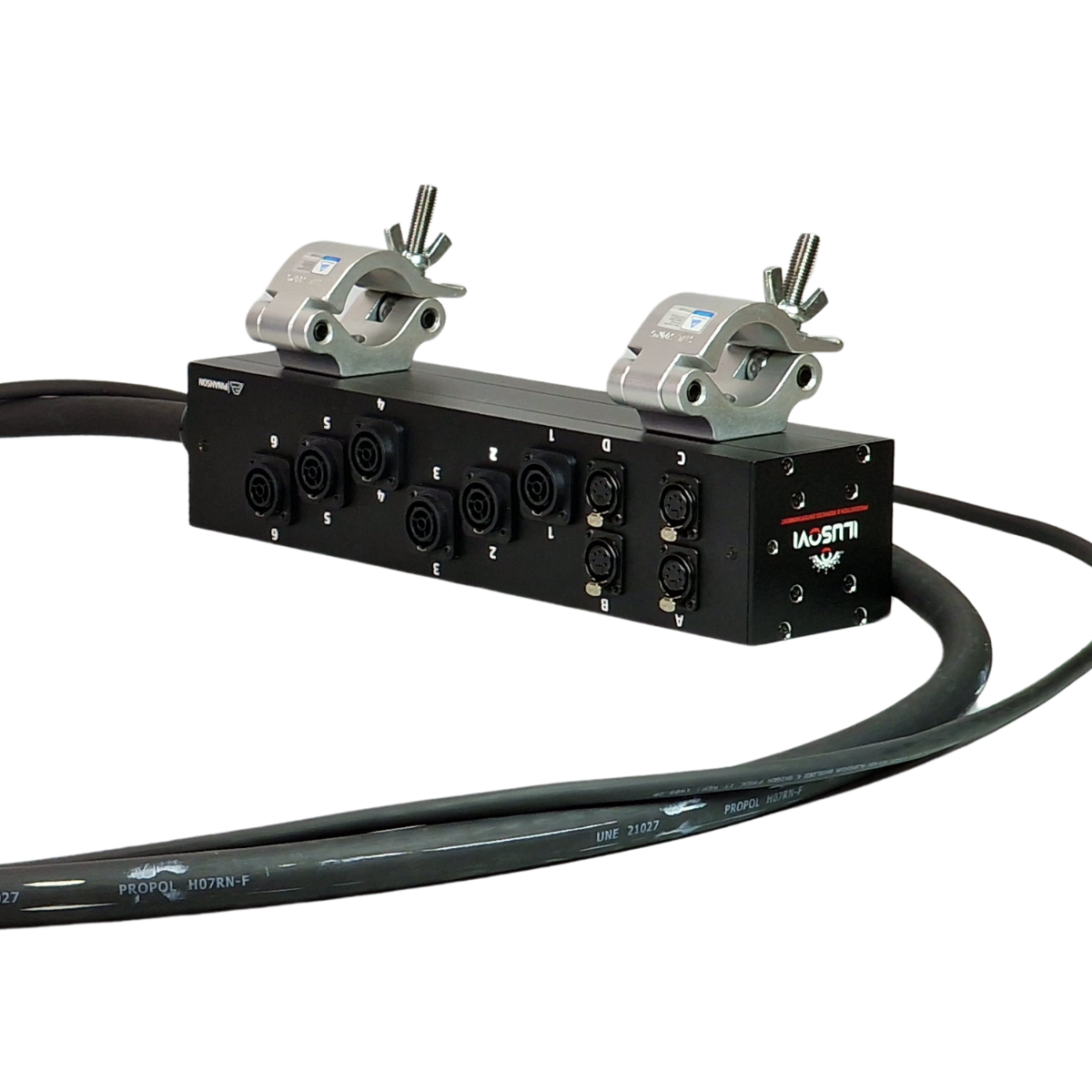

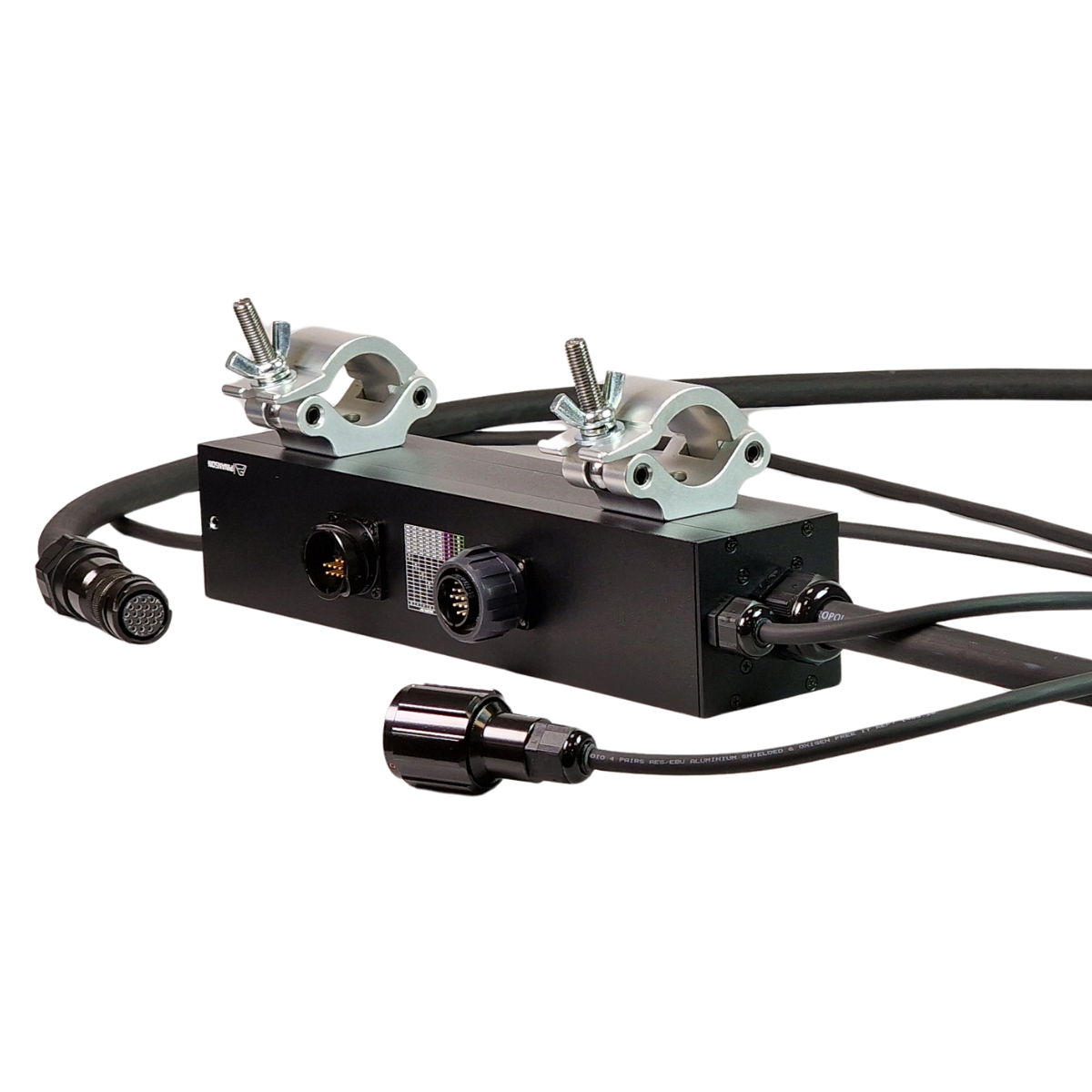

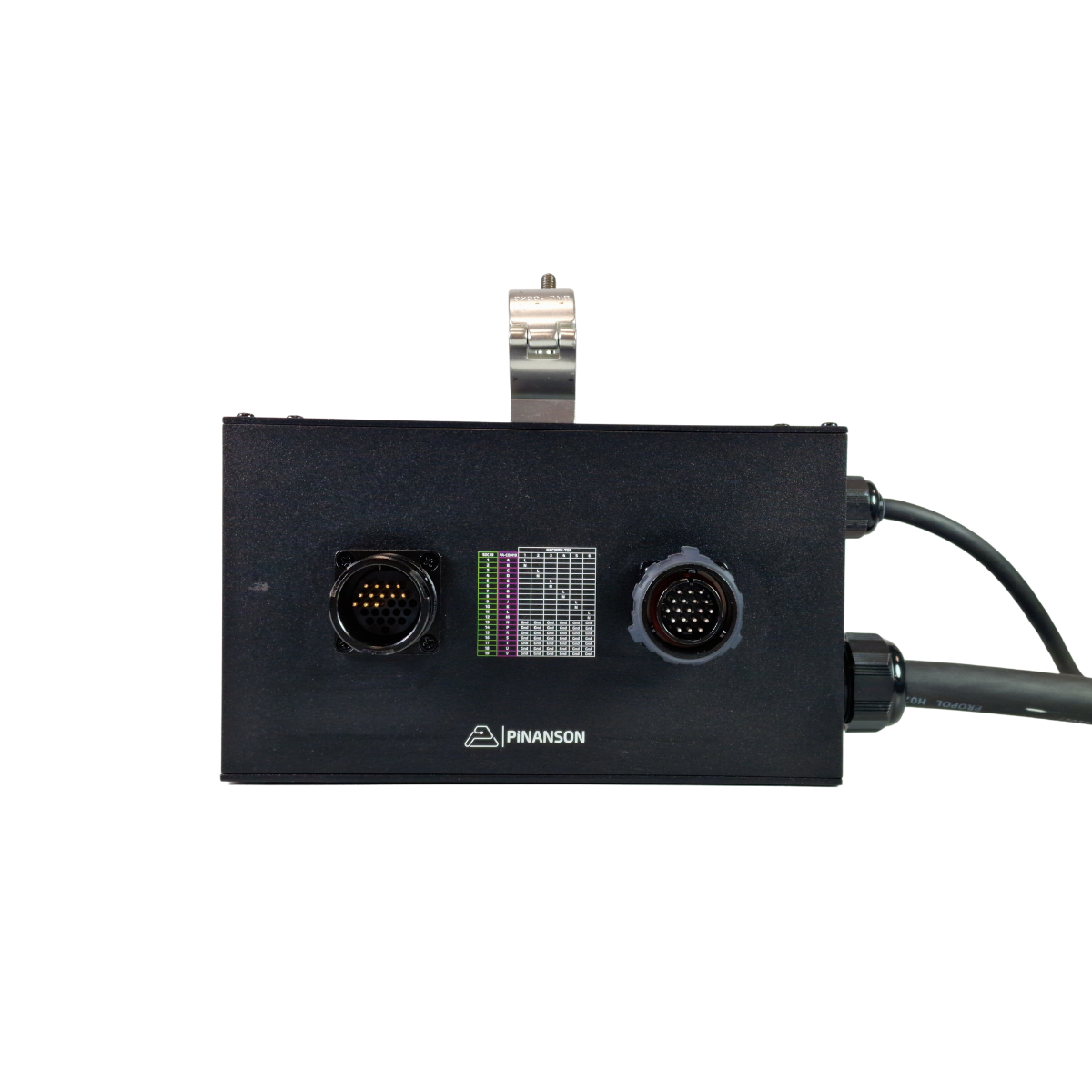

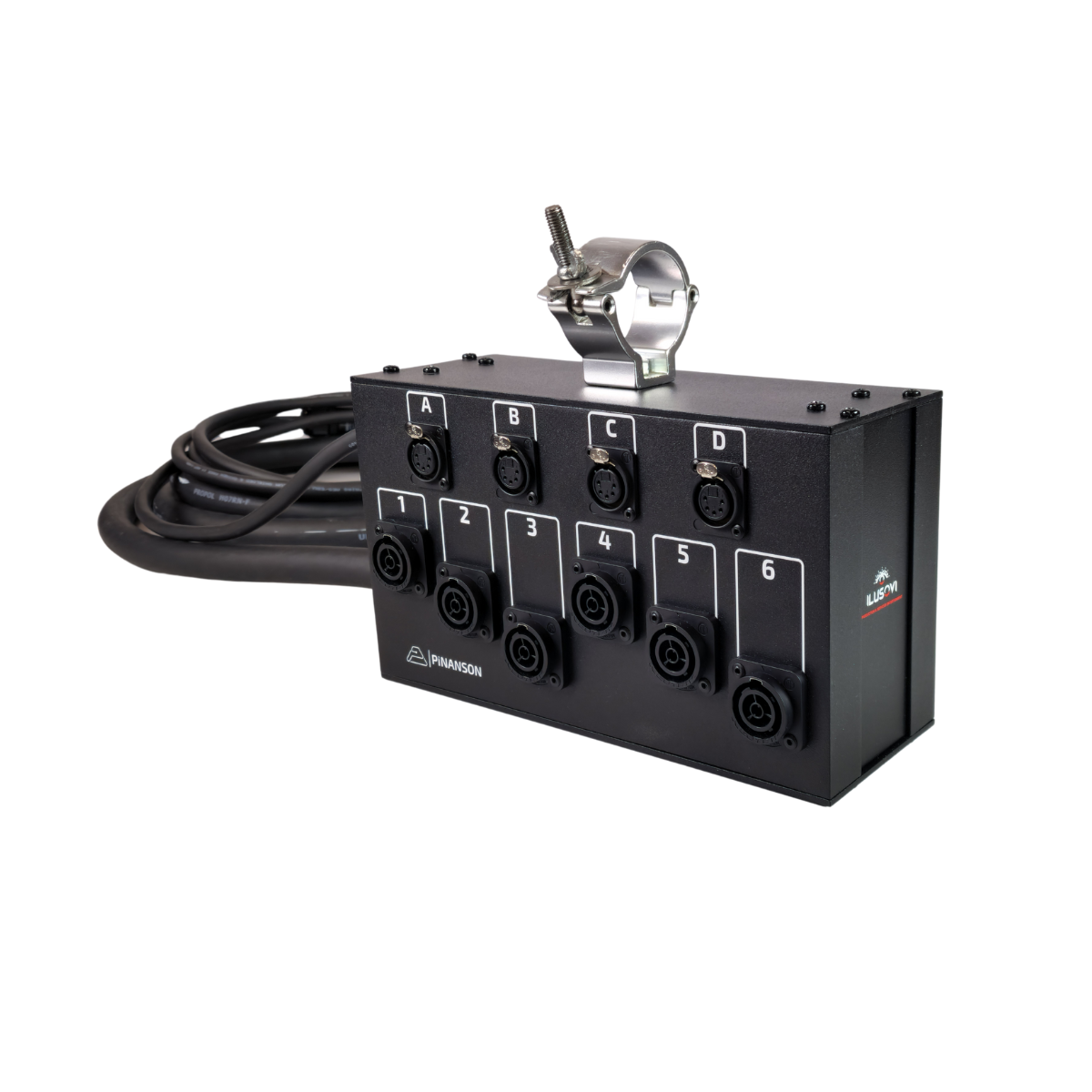

Electrified bar Power + DMX Pínanson
| Lighting distributor for connecting and distributing power and DMX signals. With claws for hanging on Truss. | |

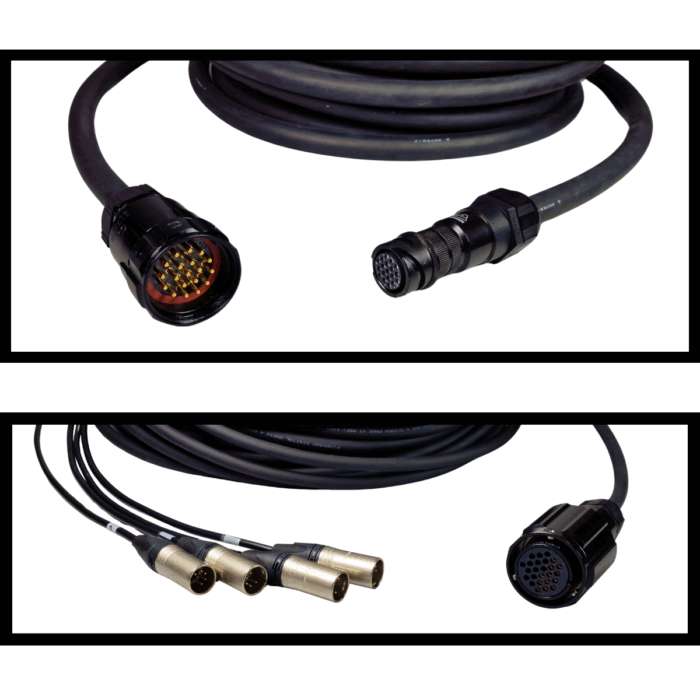

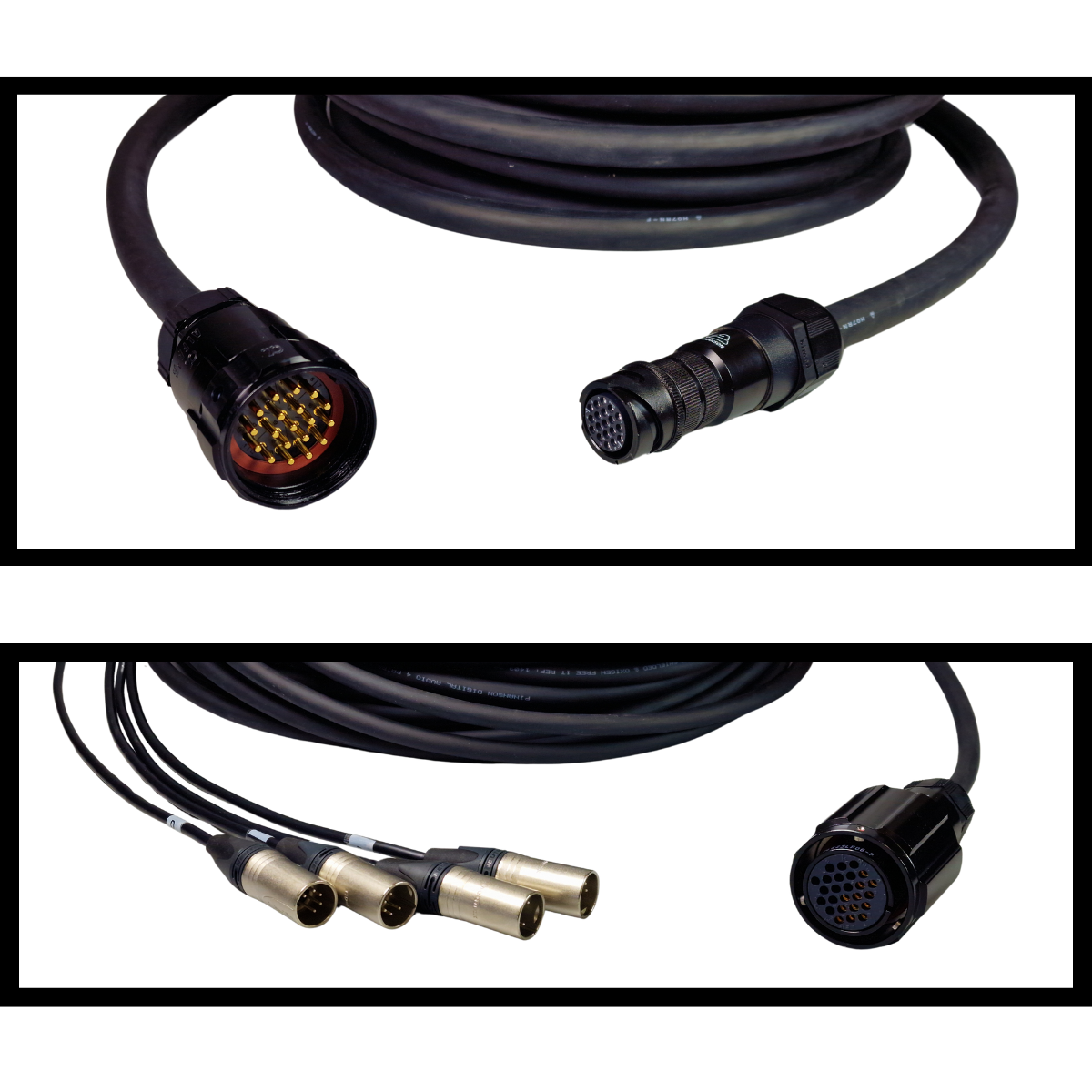

| Connectors | PowerCon True, XLR5 and Multipin connectors with Locking Ring. Boxes connected to each other with 3m multicores. |
| Place | Truss fixing. |
| Format | Box UNI with Claws |
| Manufactured | In Spain by Pinanson S.L. |
Download available technical data here
BOX UNI FOR TRUSS
| Nombre: | Name: | Caja UNI Para Truss | Box UNI for Truss | ||||||
| Emplazamiento: | Position: | Truss | Truss | ||||||
| Instalación: | Installation: | Amarrada con garras | Tied with claws | ||||||
| Material: | Material: | Panel de conexiones: | Connection pannel: | Aluminio extrusionado | Extruded aluminium | ||||
| Panel trasero: | Rear Panel: | Aluminio extrusionado | Extruded aluminium | ||||||
| Piezas de unión | Union parts | Aluminio 3mm | Aluminum 3mm | ||||||
| Garras: | Claws: | Aluminio para tubo de 50mm | Aluminum for 50 mm tube | ||||||
| Acabado: | Finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour on request. Direct print with text, logos, etc. on request. | ||||||
| Acrónimo: | Acronym: | ILM UNI | ILM UNI |
