Patch panel SMPTE 304

Patch panel for SMPTE 304 signal. For termination or patching inputs and outputs with SMPTE 304 connectors.

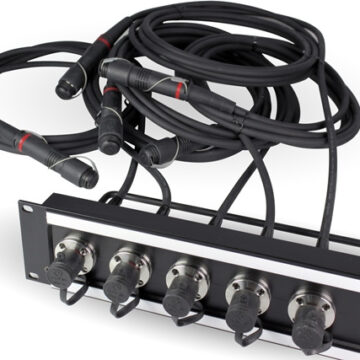

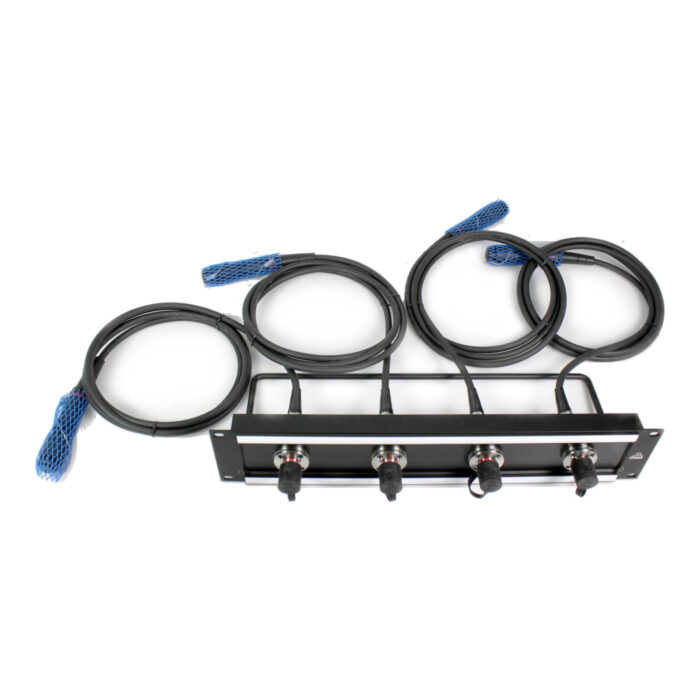

8-camera rack SMPTE 304 patch panel: SMPTE connectors and connectorised rear tails
  • Patch panel with SMPTE 304 connectors

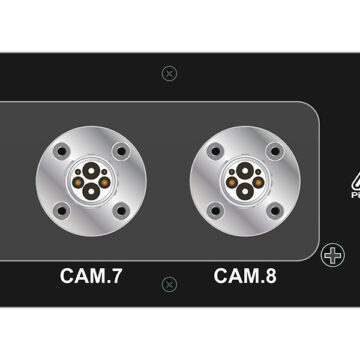

  • Front: SMPTE 304 connectors
  • Rear: SMPTE 311 cable. Free end or connectorised end
  • Complies with SMPTE 304 and SMPTE 311 standards
  • Thermoplastic insulating panel to isolate the connectors from the chassis
Connectors
SMPTE 304 (Lemo)
Cable
SMPTE 311 (Lemo)
Place
Rack screw mounting
Format
19''
Manufactured
In Spain by Pinanson S.L.

How it works · 32 s

Technical data

Specifications

Download technical data (PDF)

Material and finish

Material · Panel
Extruded aluminium
Material · Label Frame
Extruded aluminium with polyester label
Material · Cable Lacing bar
Calibrated F1 steel bar, 8 mm diameter. U-bent to 65, 100 or 150 mm
Finish
Electrostatic powder coating 100-150 µm. Colour and direct print with text, logos, etc. on request

Other data

Position
Rack screw mounting
Connection
Perpendicular to the rack
Format
Patch Panel 19"

Dimensions and weight

Dimensions mm (W X H X D)
1RU (483 × 44,5 × 25,3 + Lacing bar)
Dimensions mm (W X H X D)
1RU + Label Frame (483 × 44 × 18,5 + Lacing bar)
Dimensions mm (W X H X D)
2RU (483 × 89 × 25,3 + Lacing bar)
Dimensions mm (W X H X D)
2RU + Label Frame (483 × 88,1 × 25,3 + Lacing bar)
Dimensions mm (W X H X D)
3RU (483 × 133,5 × 25,3 + Lacing bar)
Dimensions mm (W X H X D)
4RU (483 × 177,8 × 25,3 + Lacing bar)
Dimensions mm (W X H X D)
6RU (483 × 265,9 × 25,3 + Lacing bar)
OB van diagram: six cameras, APIL18 cable reels and SMPTE 304 patch panel to the CCU

EMCO Video Industrial OB VAN (Spain)
