| TRIAX Camera Patch Panel for termination or patching inputs and outputs with TRIAX connectors. | |
| Connectors | Lemo/Fischer/Kings |
| Place | Rack screw mounting |
| Format | 19” |
| Manufactured | In Spain by Pinanson S.L. |
Patch panel Triax
Fully customizable product
We will need you to indicate the connectors you need in this type of product and we will return a graphic view and price.

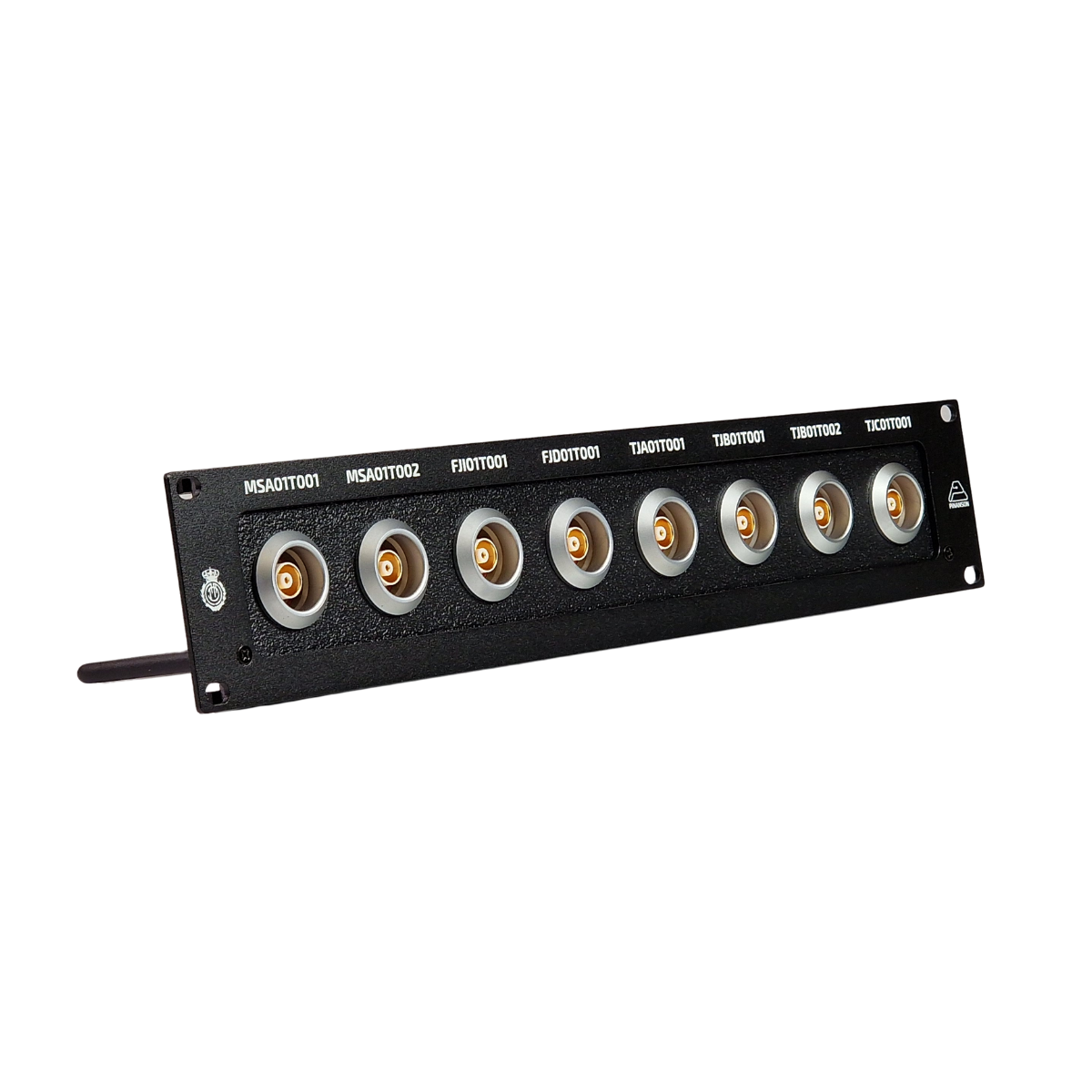

- TRIAX 75 ohm patch panel
- 1 row with 8 connectors in 2 RU (Lemo)
- 2 row with 10 connectors in 2 RU (Fischer)
- Polietylene insulation plate in order to isolate connectors and chassis
- Professional video installations where are used multiple TV camera signals.
| Nombre: | Name: | Patch panel 19" | Patch Panel 19" | ||
| Emplazamiento: | Position: | Atornillable en Rack | Rack screw mounting | ||
| Conexión: | Connection: | Perpendicular al rack | Perpendicular to the rack | ||
| Material: | Material: | Panel | Panel | Aluminio extrusionado | Extruded aluminium |
| Porta-etiquetas: | Label Frame: | Aluminio extrusionado con etiqueta de poliéster | Extruded aluminium with polyester label | ||
| Varilla sujeta-cables: | Cable Lacing bar: | Barra de acero F1 calibrado de diametro 8mm. Doblado en U de 65, 100 ó 150 mm | Calibrated F1 steel bar diameter 8mm. U bent of 65, 100 or 150 mm | ||
| Acabado: | Finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request | ||
| Dimesiones mm (An X Al X F): | Dimmensions mm (W X H X D): | 1RU (483 X 44,5 X 25,3 + Varilla sujeta-cables) | 1RU (483 X 44,5 X 25,3 + Lacing bar) | ||
| 1RU + Porta-etiquetas (483 X 44 X 18,5 + Varilla sujeta-cables) | 1RU + Label Frame (483 X 44 X 18,5 + Lacing bar) | ||||
| 2RU (483 X 89 X 25,3 + Varilla sujeta-cables) | 2RU (483 X 89 X 25,3 + Lacing bar) | ||||
| 2RU + Porta-etiquetas (483 X 88,1 X 25,3 + Varilla sujeta-cables) | 2RU + Label Frame (483 X 88,1 X 25,3 + Lacing bar) | ||||
| 3RU (483 X 133,5 X 25,3 + Varilla sujeta-cables) | 3RU (483 X 133,5 X 25,3 + Lacing bar) | ||||
| 4RU (483 X 177,8 X 25,3 + Varilla sujeta-cables) | 4RU (483 X 177,8 X 25,3 + Lacing bar) | ||||
| 6RU (483 X 265,9 X 25,3 + Varilla sujeta-cables) | 6RU (483 X 265,9 X 25,3 + Lacing bar) |
