Patch panel SMPTE 304

Patch panel SMPTE 304

Patch panel for SMPTE 304 signal. For termination or patching inputs and outputs with SMPTE 304 connectors.
Connectors SMPTE 304 (Lemo)
Cable SMPTE 311 (Lemo)
Place Rack screw mounting
Format 19”
Manufactured In Spain by Pinanson S.L.
Fully customizable product
We will need you to indicate the connectors you need in this type of product and we will return a graphic view and price.

How we have customized this product for other clients

PANEL 6 SMPTE 304

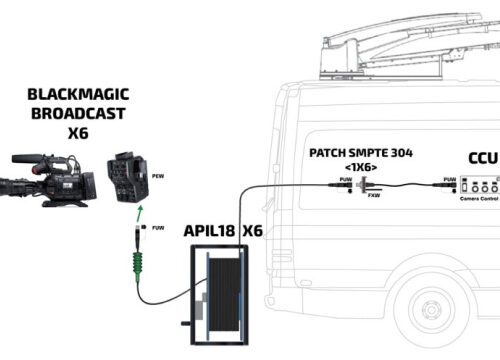

SMPTE 304 OB VAN
Insulated panel with 6 SMPTE 304 FMW to PUW connectors (3m)

Product Description ES

  • Patch panel with SMPTE 304 connectors
  • Front: SMPTE 304 connectors
  • Rear: SMPTE 311 cable. Free extreme or with connectors
  • According to SMPTE 304 and SMPTE 311 standards
  • Thermoplastic insulation plate in order to isolate connector and chassis

Patch panel SMPTE 304

Nombre:Name:Patch panel 19"Patch Panel 19"
Emplazamiento:Position:Atornillable en RackRack screw mounting
Conexión:Connection:Perpendicular al rackPerpendicular to the rack
Material:Material:PanelPanelAluminio extrusionadoExtruded aluminium
Porta-etiquetas:Label Frame:Aluminio extrusionado con etiqueta de poliésterExtruded aluminium with polyester label
Varilla sujeta-cables:Cable Lacing bar:Barra de acero F1 calibrado de diametro 8mm. Doblado en U de 65, 100 ó 150 mmCalibrated F1 steel bar diameter 8mm. U bent of 65, 100 or 150 mm
Acabado:Finish:Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc.Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request
Dimesiones mm (An X Al X F):Dimmensions mm (W X H X D):1RU (483 X 44,5 X 25,3 + Varilla sujeta-cables)1RU (483 X 44,5 X 25,3 + Lacing bar)
1RU + Porta-etiquetas (483 X 44 X 18,5 + Varilla sujeta-cables)1RU + Label Frame (483 X 44 X 18,5 + Lacing bar)
2RU (483 X 89 X 25,3 + Varilla sujeta-cables)2RU (483 X 89 X 25,3 + Lacing bar)
2RU + Porta-etiquetas (483 X 88,1 X 25,3 + Varilla sujeta-cables) 2RU + Label Frame (483 X 88,1 X 25,3 + Lacing bar)
3RU (483 X 133,5 X 25,3 + Varilla sujeta-cables)3RU (483 X 133,5 X 25,3 + Lacing bar)
4RU (483 X 177,8 X 25,3 + Varilla sujeta-cables)4RU (483 X 177,8 X 25,3 + Lacing bar)
6RU (483 X 265,9 X 25,3 + Varilla sujeta-cables)6RU (483 X 265,9 X 25,3 + Lacing bar)

Datos Técncios SMPTE304 conector-libre

Tech Data SMPTE304 connector-free

Datos Técnico SMPTE304 conector-conector

Tech Data SMPTE304 connector-connector
