Audio Stage Box for connecting and distributing audio signals to Multi. | |
Connectors | With the necessary connectors in each case. |
Place | Rack screw mounting |
Format | Box AR 19” |
Manufactured | In Spain by Pinanson S.L. |

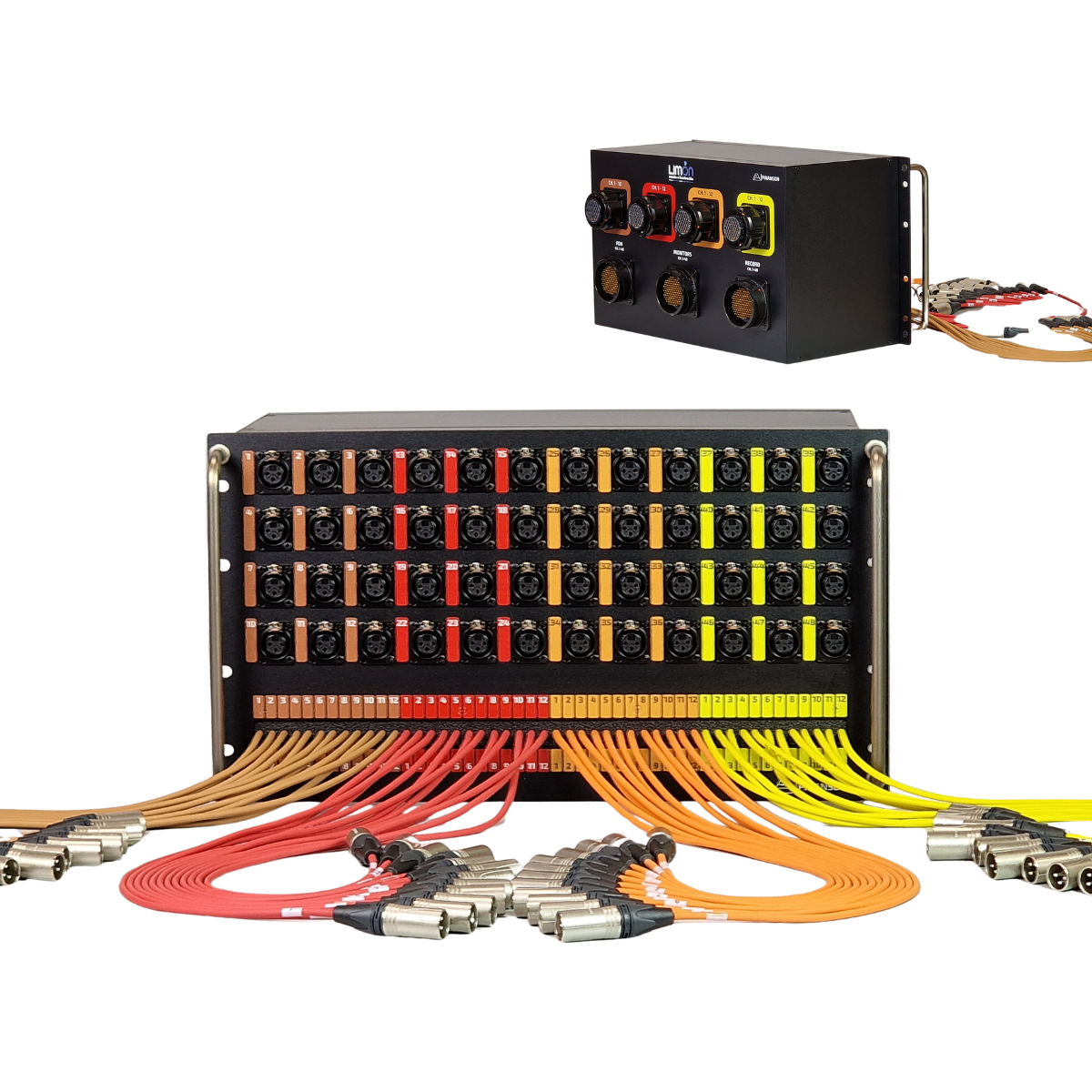

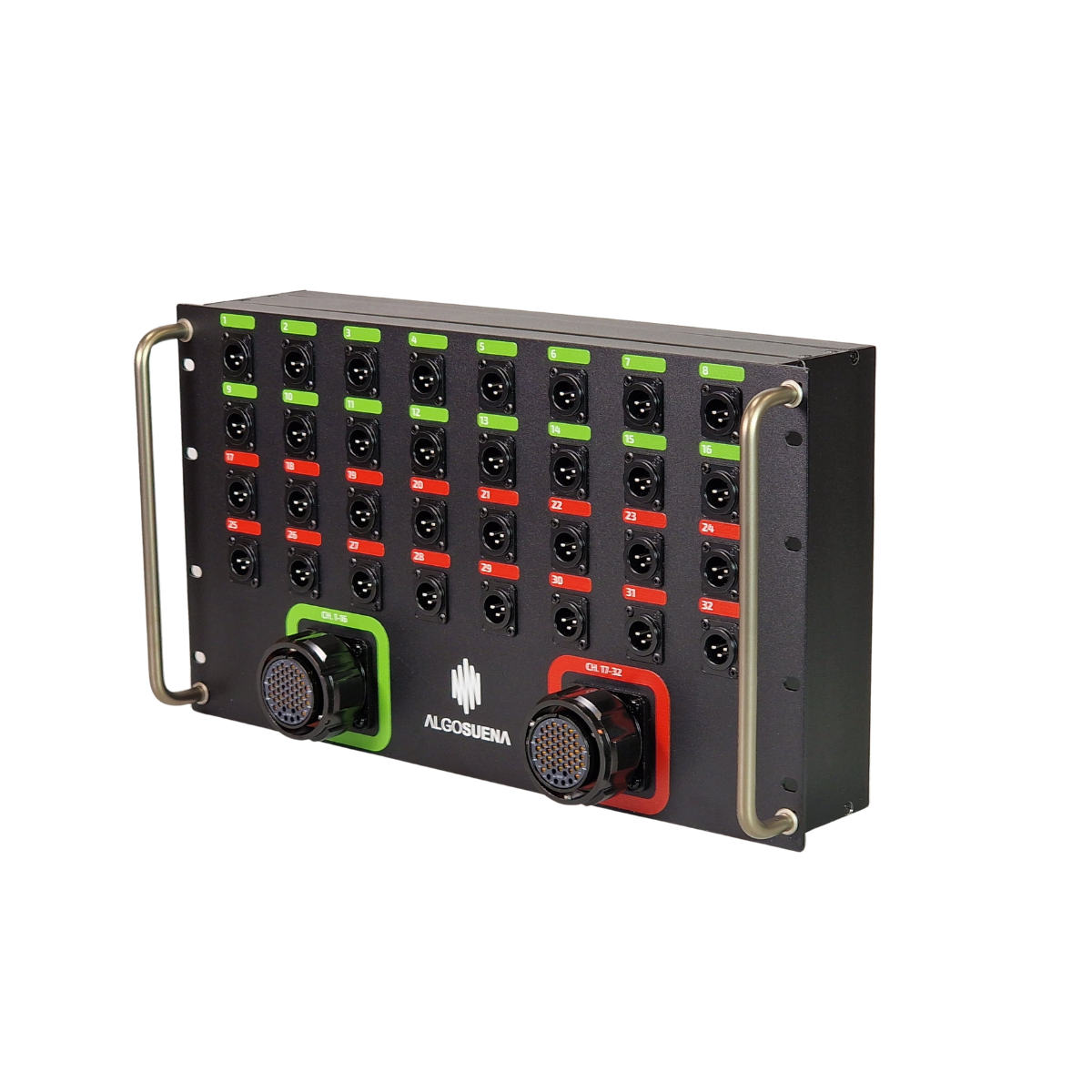

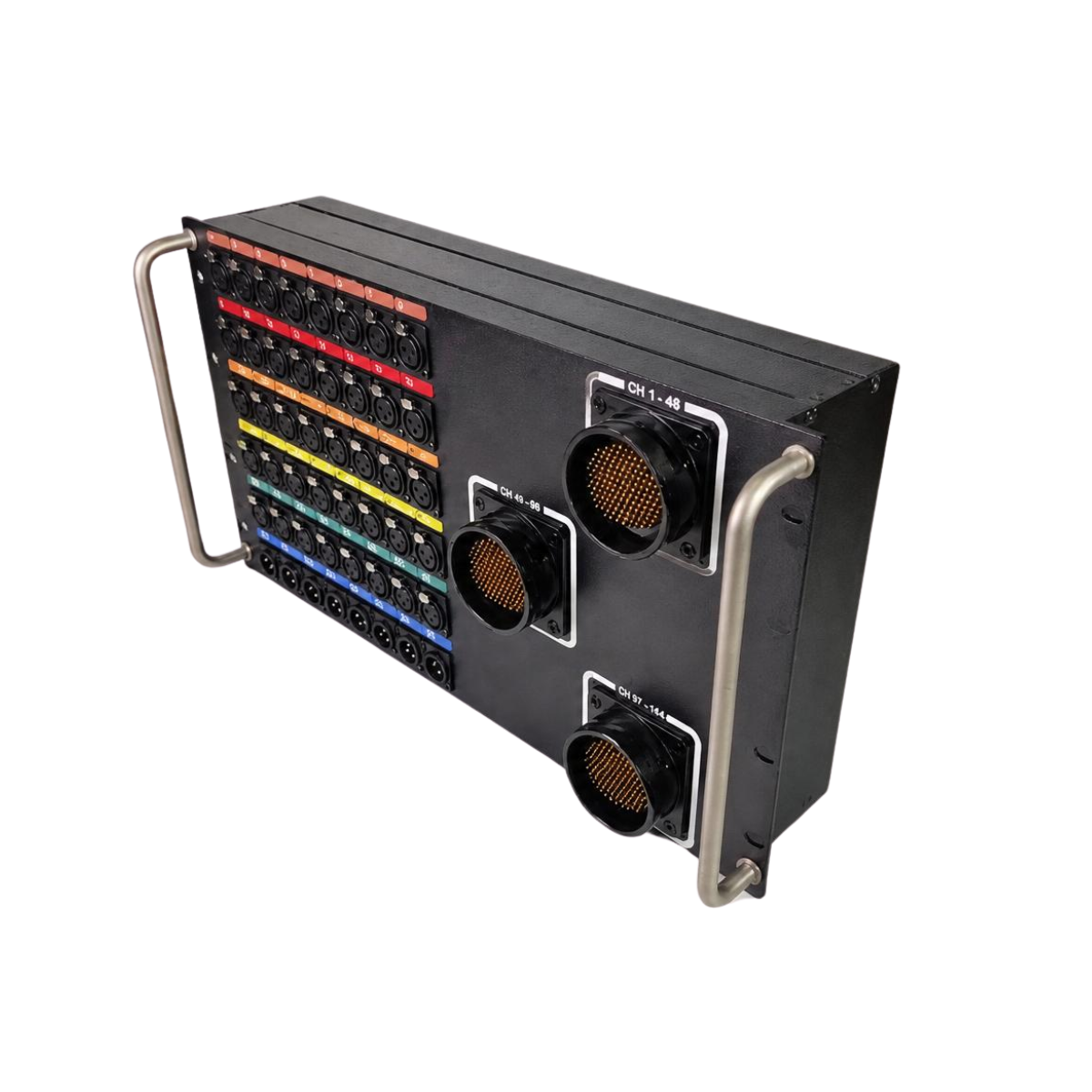

Stage box audio. GAR
Fully customizable product
We will need you to indicate the connectors you need in this type of product and we will return a graphic view and price.
More info about Stage box audio. GAR
SKU: 15531
Category: Analogue audio distributors
How we have customized this product for other clients
Proyect Arte Producciones, S.L (Spain)
64 channel: Direct input patch (64 XLRF), Remote boxes input (8 x LK 25), Remote boxes patching (64 XLRM) and 3 Analogue outputs (6 x LK 150)
Project Sound (Spain)
48 channel: Direct input patch (48 XLRF), Remote boxes input (4 x LK 37), Remote boxes patching (48 XLRM) and 2 Analogue outputs (2 x LK 150)
B.T.M. SOUND, S.L. (Spain)
64-16 channel: Direct input patch (64 XLRF-16XLRM), Remote boxes input (4 x LK 54), Remote boxes patching (56 XLRM - 8 XLRF), 3 Analogue outputs (6 x LK 150) and 4 Links (2M+2F)
Allailak (Kuwait)
64 channel: Direct input Patch (64 XLRF 8 XLRM), 3 Analogue outputs (5 x LK150M, 1 x LK54M) and Remote boxes input (8 x LK 25F)
Nombre: | Name: | Caja AR 19" | Box AR 19" | ||
Emplazamiento: | Position: | Atornillable en Rack | Rack screw mounting | ||
Conexión: | Connection: | Perpendicular al rack | Perpendicular to the rack | ||
Material | Material | Panel frontal: | Frontal Panel: | Aluminio extrusionado | Extruded aluminium |
Panel trasero: | Rear Panel: | Aluminio extrusionado | Extruded aluminium | ||
Piezas de unión | Union parts | Aluminum 3mm y/o Acero al carbono 1,5mm | Aluminio 3mm and/or Carbon steel 1,5mm | ||
Acabado: | Finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request | ||
Dimesiones mm (An X Al): | Dimmensions mm (W X H): | 1RU (483 X 44,5) | 1RU (483 X 44,5) | ||
2RU (483 X 89) | 2RU (483 X 89) | ||||
3RU (483 X 133,5) | 3RU (483 X 133,5) | ||||
4RU (483 X 177,8) | 4RU (483 X 177,8) | ||||
6RU (483 X 265,9) | 6RU (483 X 265,9) | ||||
Dimesiones mm (F): | Dimmensions mm (D): | UNI (44) | UNI (44) | ||
AR1 (91) | AR1 (91) | ||||
MAM (210) | MAM (210) |
