| Press Splitter with Dante input plus analogue audio. Passive distribution and PoE. | |
| Features | Switch for choose Dante or analogue audio input. Isolated outputs by transformer. |
| Outputs | Up to 12 XLRM |
| Transformer | Lundahl |
| Place | Rack screw mounting |
| Format | Flight case (Maletín), AR Box 19”, WR Box |
| Manufactured | In Spain by Pinanson S.L. |

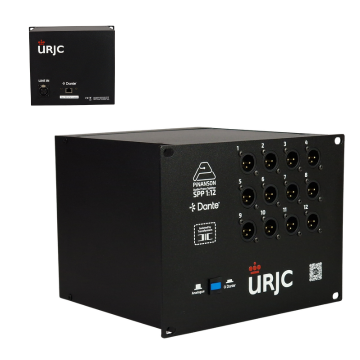

Press Splitter SPP DANTE
Remember, we can customize all our products to suit every need.
How we have customized this product for other clients
Glovo (Spain)
Passive press splitter with 12 outputs and analog or Dante input. Flight case format (Briefcase)
Parlament de Les Illes Balears (Spain)
Passive press splitter with 12 outputs and analog or Dante input. Wall plate format.
| Acrónimo: | Abbreviation: | SPP DANTE | SPP DANTE |
| Señal entrada: | Input Signal: | Audio analógico nivel línea/Audio en red Dante | Line level analogue audio/Dante signal |
| Distribución: | Distribution: | Pasiva | Passive |
| Aislamiento: | Isolation: | Por transformador | By transformer |
| Nº Entradas: | No. Input: | 1 Balanceada XLR-H. Nivel Línea/1 señal red Dante RJ-45 | 1 Balanced XLR-F. Line Level/1 Dante signal RJ45 |
| Salida Link: | Output link: | 1 Balanceada XLR-M. Nivel Línea. | 1 Balanced XLR-M. Line Level. |
| Alimentación módulo Dante | Dante module power: | PoE | PoE |
| Nº Salidas: | No. Outputs: | 12 Balanceadas XLR-M. Nivel Línea. | 12. Balanced XLR-M. Line level. |
| Respuesta en Frecuencia: | Frequency response: | ± 0.1 dB (+4 dBu, 20Hz-20KHz) | ± 0.1 dB (+4 dBu, 20Hz-20KHz) |
| THD+N: | THD+N: | ≤ 0.06% (+4 dBu, 1KHz) | ≤ 0.06% (+4 dBu, 1KHz) |
| CMRR: | CMRR: | > 90 dB (+4 dBu, 1KHz) | > 90 dB (+4 dBu, 1KHz) |
| Formato: | Format: | Fly case (Maletín), Wall Rack o Caja Enrackable | Fly case (Brief case), Wall Rack or Rack mount box |
| Frecuencia de muestreo | Sample rate | 44,1 KHz, 48 KHz y 96 KHz | 44,1 KHz, 48 KHz y 96 KHz |
| Profundiad de bit | Bit depth | 24 bits | 24 bits |
| Velocidad de red | Network speed | 100 Mbps | 100 Mbps |
| Alimentación | Power | PoE (Power over Ethernet) Compatible con Clase 1 802,3af POE PF | PoE (Power over Ethernet) Class 1 802.3af POE PD compliant |
FLIGHT CASE FORMAT (BRIEFCASE)
| Nombre: | Name: | Flight case (Maletín) | Flight case (Briefcase) | ||
| Emplazamiento: | Position: | Superficies | Surfaces | ||
| Instalacion: | Installation: | Móvil | Mobile | ||
| Material: | Material: | Bisagras y cierre: | Hinges and locking: | Chapa cincada | Galvanized sheet |
| Asa: | Handle: | Plástico | Plastic | ||
| Cantoneras: | Corners: | Plástico (MOD: ALUM) o Chapa cincada (MOD: ALUM-W 2015) | Plastic (MOD: ALUM) or Galvanized sheet (MOD: ALUM-W 2015) | ||
| Perfilería: | Frames: | Aluminio | Aluminium | ||
| Patas: | Foot: | Goma | Rubber | ||
| Superfice: | Surface: | Madera contrachapada y cara exterior recubierta de pvc de 4mm (MOD: ALUM) ó 6mm (MOD: ALUM-W 2015) | Plywood and exterior face covered with 4mm (MOD: ALUM) or 6mm PVC (MOD: ALUM-W 2015) | ||
| Revestimiento interno: | Inner coating: | Foam 5mm (ALUM-W 2015) | Foam 5mm (ALUM-W 2015) | ||
| Panel de conexiones: | Connection pannel: | Aluminio extrusionado | Extruded aluminium | ||
| Acabado: | Finish: | Acabado interior: | Inside finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour on request. Direct print with text, logos, etc. on request. |
| Acrónimo: | Acronym: | M | M |
| Nombre: | Name: | Caja AR 19" | Box AR 19" | ||
| Emplazamiento: | Position: | Atornillable en Rack | Rack screw mounting | ||
| Conexión: | Connection: | Perpendicular al rack | Perpendicular to the rack | ||
| Material | Material | Panel frontal: | Frontal Panel: | Aluminio extrusionado | Extruded aluminium |
| Panel trasero: | Rear Panel: | Aluminio extrusionado | Extruded aluminium | ||
| Piezas de unión | Union parts | Aluminum 3mm y/o Acero al carbono 1,5mm | Aluminio 3mm and/or Carbon steel 1,5mm | ||
| Acabado: | Finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request | ||
| Dimesiones mm (An X Al): | Dimmensions mm (W X H): | 1RU (483 X 44,5) | 1RU (483 X 44,5) | ||
| 2RU (483 X 89) | 2RU (483 X 89) | ||||
| 3RU (483 X 133,5) | 3RU (483 X 133,5) | ||||
| 4RU (483 X 177,8) | 4RU (483 X 177,8) | ||||
| 6RU (483 X 265,9) | 6RU (483 X 265,9) | ||||
| Dimesiones mm (F): | Dimmensions mm (D): | UNI (44) | UNI (44) | ||
| AR1 (91) | AR1 (91) | ||||
| MAM (210) | MAM (210) |
