| Line level audio Press Splitter for passive distributing. | |
| Features | Isolated outputs by transformer. |
| Outputs | Up to 24 XLRM |
| Transformer | Lundahl |
| Place | Portable, Rack screw mounting or surfaces screw mounting. |
| Format | Flight case (Briefcase), Box AR 19”, Box MF, Box WR or Wall frame |
| Manufactured | In Spain by Pinanson S.L. |

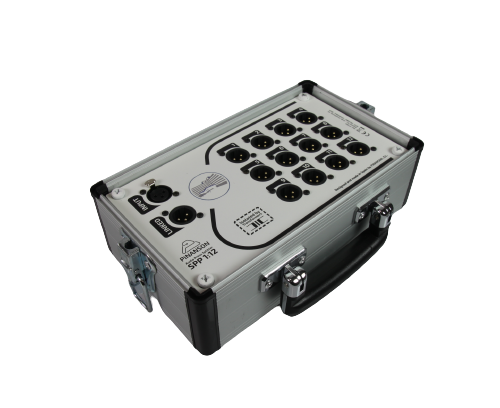

Press Splitter SPP
Remember, we can customize all our products to suit every need.
How we have customized this product for other clients
Torrecardenas University Hospital (Spain)
Line level audio splitter for passive distribution. For 12 press stations in briefcase-type flight case format.
Valencia Football Club (Spain)
Line level audio splitter for passive distribution. For 8 press stations in Wall Rack format.
Catalonia Hotels Resorts (Spain)
Line level audio splitter for passive distribution. For 8 press stations in surface box MF format.
Municipality of Valladolid (Spain)
Line level audio splitter for passive distribution. For 8 press stations in Wall plate format.
| Acrónimo: | Abbreviation: | SPP | SPP |
| Tipo de Señal: | Signal: | Audio nivel línea | Line level audio |
| Distribución: | Distribution: | Pasiva | Passive |
| Aislamiento: | Isolation: | Por transformador. Por canal. | By transformer. Each channel. |
| Nº Entradas: | No. Input: | 1 Balanceada XLR-H. Nivel Línea. | 1 Balanced XLR-F. Line Level. |
| Salida Link: | Output link: | 1 Balanceada XLR-M. Nivel Línea. | 1 Balanced XLR-M. Line Level. |
| Nº Salidas: | No. Outputs: | 8, 12 o 24 Balanceadas XLR-M. Nivel Línea. | 8, 12 o 24 Balanceaded XLR-M. Line level. |
| Respuesta en Frecuencia: | Frequency response: | ± 0.8 dB (+4 dBu, 20Hz-20KHz) | ± 0.8 dB (+4 dBu, 20Hz-20KHz) |
| THD+N: | THD+N: | ≤ 0.05% (+4 dBu, 1KHz) | ≤ 0.05% (+4 dBu, 1KHz) |
| CMRR: | CMRR: | > 90 dB (+4 dBu, 1KHz) | > 90 dB (+4 dBu, 1KHz) |
| Formato: | Format: | Fly case (Maletín), Wall Rack o Caja MF | Fly case (Briefcase), Wall Rack or MF box |
FORMAT Flight case (Briefcase)
| Nombre: | Name: | Flight case (Maletín) | Flight case (Briefcase) | ||
| Emplazamiento: | Position: | Superficies | Surfaces | ||
| Instalacion: | Installation: | Móvil | Mobile | ||
| Material: | Material: | Bisagras y cierre: | Hinges and locking: | Chapa cincada | Galvanized sheet |
| Asa: | Handle: | Plástico | Plastic | ||
| Cantoneras: | Corners: | Plástico (MOD: ALUM) o Chapa cincada (MOD: ALUM-W 2015) | Plastic (MOD: ALUM) or Galvanized sheet (MOD: ALUM-W 2015) | ||
| Perfilería: | Frames: | Aluminio | Aluminium | ||
| Patas: | Foot: | Goma | Rubber | ||
| Superfice: | Surface: | Madera contrachapada y cara exterior recubierta de pvc de 4mm (MOD: ALUM) ó 6mm (MOD: ALUM-W 2015) | Plywood and exterior face covered with 4mm (MOD: ALUM) or 6mm PVC (MOD: ALUM-W 2015) | ||
| Revestimiento interno: | Inner coating: | Foam 5mm (ALUM-W 2015) | Foam 5mm (ALUM-W 2015) | ||
| Panel de conexiones: | Connection pannel: | Aluminio extrusionado | Extruded aluminium | ||
| Acabado: | Finish: | Acabado interior: | Inside finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour on request. Direct print with text, logos, etc. on request. |
| Acrónimo: | Acronym: | M | M |
FORMAT BOX AR
| Nombre: | Name: | Caja AR 19" | Box AR 19" | ||
| Emplazamiento: | Position: | Atornillable en Rack | Rack screw mounting | ||
| Conexión: | Connection: | Perpendicular al rack | Perpendicular to the rack | ||
| Material | Material | Panel frontal: | Frontal Panel: | Aluminio extrusionado | Extruded aluminium |
| Panel trasero: | Rear Panel: | Aluminio extrusionado | Extruded aluminium | ||
| Piezas de unión | Union parts | Aluminum 3mm y/o Acero al carbono 1,5mm | Aluminio 3mm and/or Carbon steel 1,5mm | ||
| Acabado: | Finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request | ||
| Dimesiones mm (An X Al): | Dimmensions mm (W X H): | 1RU (483 X 44,5) | 1RU (483 X 44,5) | ||
| 2RU (483 X 89) | 2RU (483 X 89) | ||||
| 3RU (483 X 133,5) | 3RU (483 X 133,5) | ||||
| 4RU (483 X 177,8) | 4RU (483 X 177,8) | ||||
| 6RU (483 X 265,9) | 6RU (483 X 265,9) | ||||
| Dimesiones mm (F): | Dimmensions mm (D): | UNI (44) | UNI (44) | ||
| AR1 (91) | AR1 (91) | ||||
| MAM (210) | MAM (210) |
FORMAT BOX MF
| Nombre | Name | Caja MF A | Box MF A | Caja MF S | Box MF S | Caja MF PD | Box MF PD | ||
| Emplazamiento: | Position: | Superficies | Surfaces | Superficies | Surfaces | Superficies | Surfaces | ||
| Instalacion: | Installation: | Móvil | Mobile | Atornillable | Screw mounting | Atornillable | Screw mounting | ||
| Conexión: | Connection: | Perpendicular superficie | Perpendicular to the surface | Perpendicular o paralelo a la superficie (conectores en las tapas laterales) | Perpendicular or parallel to the surface (connectors on the lateral lids) | Perpendicular superficie | Perpendicular to the surface | ||
| Material: | Material: | Caja: | Box: | Aluminio extrusionado | Extruded aluminium | Aluminio extrusionado | Extruded aluminium | Aluminio extrusionado | Extruded aluminium |
| Tapas: | Covers: | Aluminio 3mm | Aluminum 3mm | Acero 1,5mm | Steel 1,5mm | Aluminio 3mm | Aluminum plate | ||
| Acabado: | Finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request. | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request. | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request. | ||
| Acrónimo: | Acronym: | CAM A | CAM A | CAM S | CAM S | CAM PD | CAM PD | ||
| Dimesiones mm (An X Al X F): | Dimmensions mm (W X H X D): | CAM A (Depende de la configuración X 115 X 45) | CAM A (Depends on the configuration X 115 X 45) | CAM S (Depende de la configuración X 115 X 45) | CAM S (Depends on configuration X 115 X 45) | CAM PD (115 X 45 X Depende de la configuración) | CAM PD (115 X 45 X Depends on configuration) | ||
| CAMG A (Depende de la configuración X 143 X 47) | CAMG A (Depends on the configuration X 143 X 47) | CAMG S (Depende de la configuración X 143 X 47) | CAMG S (Depends on configuration X 143 X 47) | CAMG PD (143 X 47 X Depende de la configuración) | CAMG PD (143 X 47 X Depends on configuration) |
FORMAT BOX WR
| Nombre | Name | Caja WR | Box WR | ||
| Emplazamiento: | Position: | Superficie | Surface | ||
| Instalación: | Installation: | Atornillable | Screw mounting | ||
| Conexión: | Connection: | Perpendicular superficie | Perpendicular to the surface | ||
| Material: | Material: | Solapa: | Flap: | Acero 1,5mm | Steel 1,5mm |
| Puerta: | Door: | ||||
| Caja: | Box: | Acero 1,5mm | Steel 1,5mm | ||
| Panel de conexiones: | Connection pannel: | Aluminio extrusionado | Extruded aluminium | ||
| Acabado: | Finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request. | ||
| Acrónimo: | Acronym: | WR | WR | ||
| Dimesiones mm (An X Al X F): | Dimmensions mm (W X H X D): | 2RUMM (137 X 146 X 100) | 2RUMM (137 X 146 X 100) | ||
| 2RUM (273 X 143 X 70/100) | 2RUM (273 X 143 X 70/100) | ||||
| 4RUM (273 X 300 X 70/100) | 4RUM (273 X 300 X 70/100) | ||||
| 6RUM (273 X 300 X 70/100) | 6RUM (273 X 300 X 70/100) | ||||
| 8RUM (273 X 389 X 70/100) | 8RUM (273 X 389 X 70/100) | ||||
| 2RU (515 X 143 X 70/100) | 2RU (515 X 143 X 70/100) | ||||
| 4RU (515 X 300 X 70/100) | 4RU (515 X 300 X 70/100) | ||||
| 6RU (515 X 300 X 70/100) | 6RU (515 X 300 X 70/100) | ||||
| 8RU (515 X 480 X 70/100) | 8RU (515 X 480 X 70/100) | ||||
| 10RU (515 X 480 X 70/100) | 10RU (515 X 480 X 70/100) | ||||
| 12RU (515 X 655 X 70/100) | 12RU (515 X 655 X 70/100) | ||||
| 14RU (515 X 655 X 70/100) | 14RU (515 X 655 X 70/100) |
FORMAT WALL FRAME
| Nombre: | Name: | Embellecedor W | W Wall frame | ||
| Emplazamiento: | Position: | Superficies | Surface | ||
| Instalación: | Installation: | Encastrabble | Built-In | ||
| Conexión: | Connection: | Perpendicular superficie | Perpendicular to the surface | ||
| Material: | Material: | Solapa: | Wall frame: | Acero 1,5mm | Steel 1,5mm |
| Tapa: | Door: | ||||
| Caja trasera: | Back box: | ||||
| Panel de conexiones: | Connection pannel: | Aluminio extrusionado | Extruded aluminium | ||
| Acabado: | Finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request. | ||
| Acrónimo: | Acronym: | W | W | ||
| Dimesiones mm (An X Al X F): | Dimmensions mm (W X H X D): | 2RUM (273 X 143 X 8) | 2RUM (273 X 143 X 8) | ||
| 4RUM (273 X 300 X 8) | 4RUM (273 X 300 X 8) | ||||
| 6RUM (273 X 300 X 8) | 6RUM (273 X 300 X 8) | ||||
| 8RUM (273 X 389 X 8) | 8RUM (273 X 389 X 8) | ||||
| 2RU (515 X 143 X 8) | 2RU (515 X 143 X 8) | ||||
| 4RU (515 X 300 X 8) | 4RU (515 X 300 X 8) | ||||
| 6RU (515 X 300 X 8) | 6RU (515 X 300 X 8) | ||||
| 8RU (515 X 480 X 8) | 8RU (515 X 480 X 8) | ||||
| 10RU (515 X 480 X 8) | 10RU (515 X 480 X 8) | ||||
| 12RU (515 X 655 X 8) | 12RU (515 X 655 X 8) | ||||
| 14RU (515 X 655 X 8) | 14RU (515 X 655 X 8) |
FORMAT FLOOR BOX
| Nombre: | Name: | Caja TB AT | Box TB AT | ||
| Emplazamiento: | Position: | Suelo | Floor | ||
| Instalacion: | Installation: | Encastrable | Built-in | ||
| Conexión: | Connection: | Perpendicular suelo | Perpendicular to the floor | ||
| Material: | Material: | Solapa: | Flap: | Plancha aluminio 6mm | 6mm aluminum plate |
| Puerta: | Door: | Plancha aluminio 6mm | 6mm aluminum plate | ||
| Eje de puerta: | Door axis: | Acero inoxidable | Inox steel | ||
| Soporte de Eje: | Axis support: | Latón Niquelado | Nickel-plated brass | ||
| Bisagras salida cables: | Cable exit hinges: | Acero inoxidable | Inox steel | ||
| Panel Frontal y Trasero: | Frontal and rear panel: | Aluminio extrusionado | Extruded aluminium | ||
| Panel de conexiones: | Connection pannel: | Aluminio extrusionado | Extruded aluminium | ||
| Placas de unión: | Union laterals: | Plancha aluminio | Aluminum plate | ||
| Acabado: | Finish: | Acabado exterior: | Outside finish: | Recubrimiento electroestático en polvo 100-150 µ. Color bajo petición. | Powder electrostatic covering 100-150 μ. |
| Acabado interior: | Inside finish: | Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc. | Powder electrostatic covering 100-150 μ. Colour on request. Direct print with text, logos, etc. on request. | ||
| Carga máxima soportada (Mediante ensayo de compresión a 20 ± 3° C, 10mm/min): | Maximum supported Load (By compression test at 20 ± 3° C, 10 mm/min): | 12.670 N | 12.670 N | ||
| Acrónimo: | Acronym: | TB AT | TB AT | ||
| Dimesiones mm (An X Al X F): | Dimmensions mm (W X H X D): | 2U 183 (183 X 180 X 134) | 2U 183 (183 X 180 X 134) | ||
| 2U 233 (233 X 180 X 134) | 2U 233 (233 X 180 X 134) | ||||
| 3U 233 (233 X 255 X 134) | 3U 233 (233 X 255 X 134) | ||||
| 4U 300 (300 X 270 X 178) | 4U 300 (300 X 270 X 178) |
