Adaptor SMPTE 304 box MF

Adaptor SMPTE 304 box MF

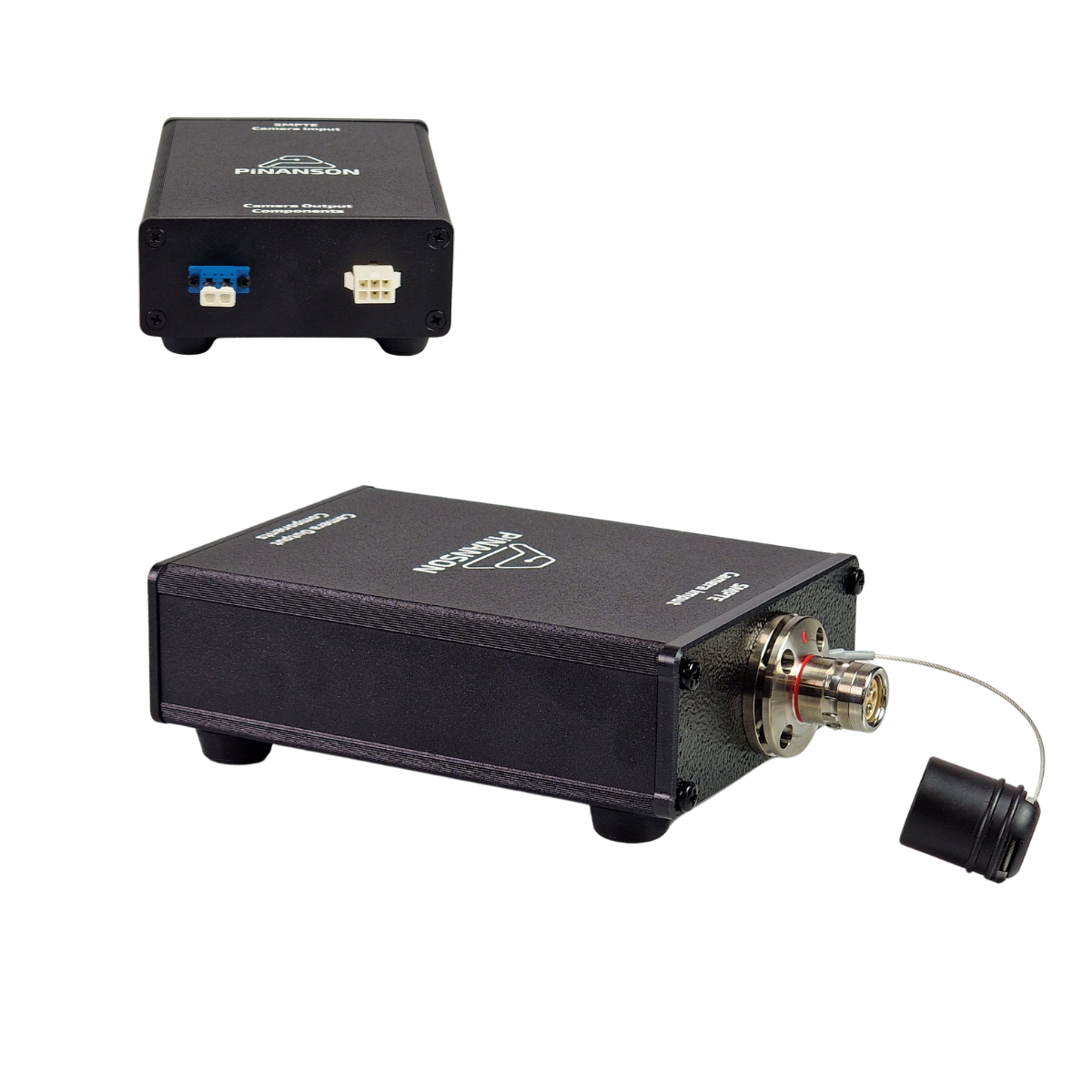

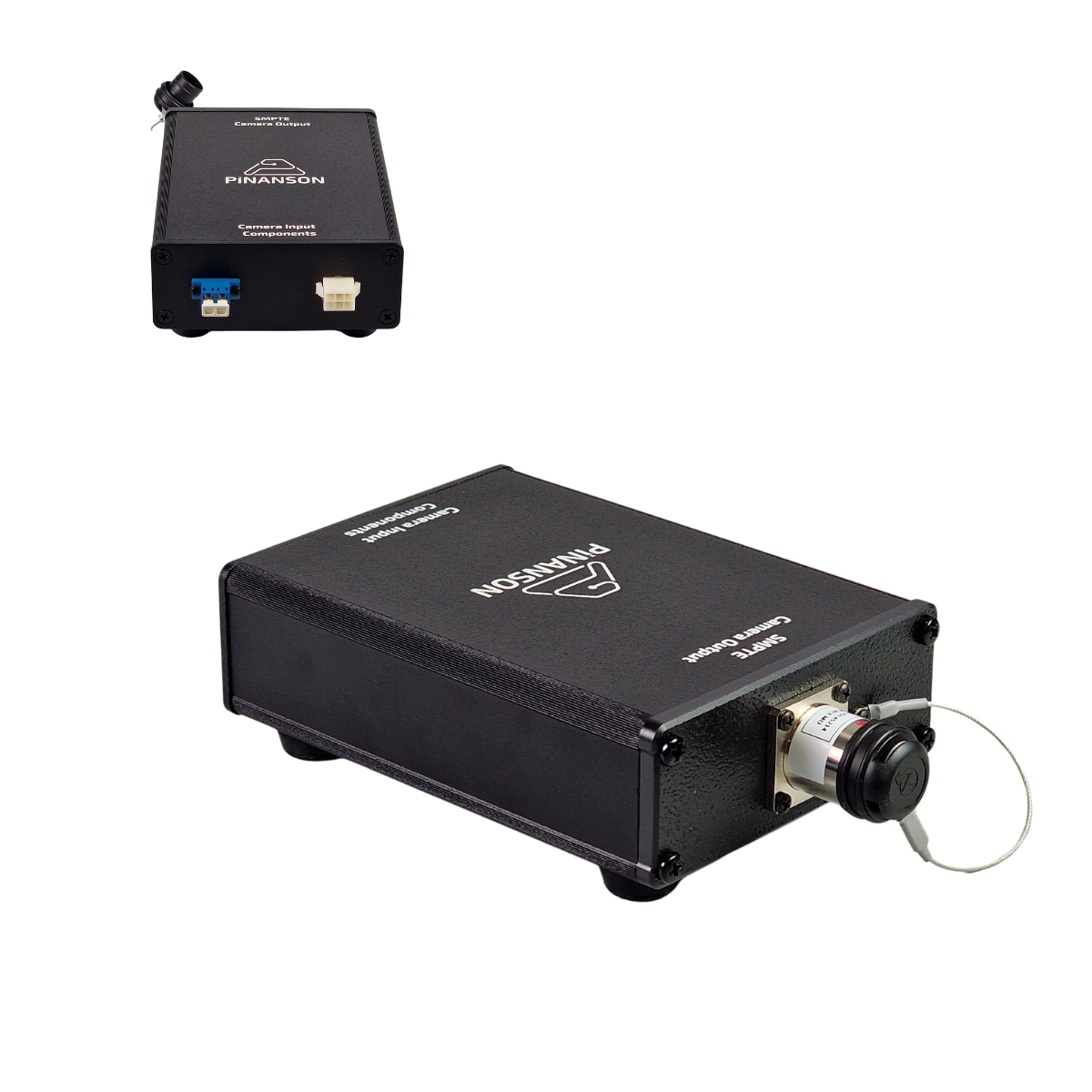

SMPTE 304 Adaptor for adapting SMPTE 304 connectors to more standardized connectors.
Connectors
Lemo FXW – 2SC/LC SM – TBLOCK AMP
Place Portable
Format Box MF
Manufactured In Spain by Pinanson S.L.
Remember, we can customize all our products to suit every need.
    • (max file size 20 MB)

    If you prefer we can print your corporate logo on this product.

    How can I upload my logo?

SKU: PTR4617+M1548 Categories: ,

Product Description ES

  • Adaptor of hybrid connectors SMPTE 304
  • Front side: SMPTE 304 hybrid connectors
  • Trasera: terminal block AMP and 2 LC o SC connectors
  • MF portable modular box
  • Complies with SMPTE 304 standard
  • Thermoplastic insulation plate to isolate connectors and chassis

NombreNameCaja MF ABox MF A
Emplazamiento:Position:SuperficiesSurfaces
Instalacion:Installation:MóvilMobile
Conexión:Connection:Perpendicular superficiePerpendicular to the surface
Material:Material:Caja:Box:Aluminio extrusionadoExtruded aluminium
Piezas de uniónUnion partsAluminio 3mmAluminum 3mm
Acabado:Finish:Recubrimiento electroestático en polvo 100-150 µ. Bajo petición, color e Impresión directa con texto, logotipos, etc.Powder electrostatic covering 100-150 μ. Colour and direct print with text, logos, etc. on request.
Acrónimo:Acronym:CAM ACAM A
Dimesiones mm (An X Al X F):Dimmensions mm (W X H X D):CAM A (Depende de la configuración X 115 X 45)CAM A (Depends on the configuration X 115 X 45)
CAMG A (Depende de la configuración X 143 X 47)CAMG A (Depends on the configuration X 143 X 47)

DATOS TÉCNICOS ADAPTADOR SMPTE304

TECH DATA SMPTE 304 ADAPTOR
