Active press audio splitter with 16, 24 or 32 transformer-isolated XLR outputs, group gain and headphones. Optional battery and Dante input. By Pinanson.

SMC-16 active press box splitter in flight case: 16 isolated XLR outputs in 8 groups, gain, meters, headphones – Pinanson SMC
  • Gain control per group
  • Visual and headphone monitoring
  • Transformer-isolated outputs
Optional
Dante network digital signal input
Outputs
Up to 32 XLRM
Transformer
Lundahl
Place
Portable, rack screw mounting or surface screw mounting.
Format
Flight case, Box AR 19'' or Box WR

Outputs Choose

Format Choose

Request a quote Technical data (PDF)
  • Made in Spain
  • Since 1983
  • Customisable with your logo
  • 3-year warranty

Application

Press room diagram with an SMC active press splitter feeding the cameras

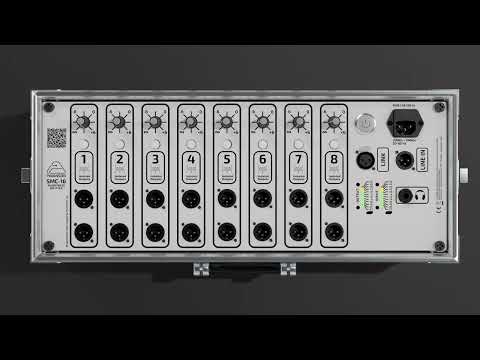

How it works · 1 min 16 s

SA SMC active press splitter, 16 to 32 outputs

Technical data

Specifications

Download technical data (PDF)

Signal

Signal type
Line level audio
Distribution
Active
Isolation
By transformer. Each channel

Inputs and outputs

Input
1 Balanced XLR-F. Line Level
Output link
1 Balanced XLR-M. Line Level
Outputs
16, 24 or 32. Balanced XLR-M. Line level
Gain
Each group with potentiometer up to +6 dB
Monitoring
Visual (by LED) of Input and Output (per group)signals

Performance

Frequency response
± 0.1 dB (+4 dBu, 20 Hz-20 kHz)
THD+N
≤ 0.01% (+4 dBu, 1 kHz)
CMRR
> 100 dB (+4 dBu, 1 kHz)

Other data

Sample rate
44,1 kHz, 48 kHz y 96 kHz
Bit depth
24 bits
Network speed
100 Mbps
Power
PoE (Power over Ethernet) Class 1, IEEE 802.3af (PD) compliant

Construction

Formats

Box AR 19"

Materials and dimensions
Position
Rack screw mounting
Connection
Perpendicular to the rack
Front panel
Extruded aluminium
Rear Panel
Extruded aluminium
Union parts
Aluminium 3 mm and/or carbon steel 1.5 mm
Finish
Electrostatic powder coating 100-150 µm. Colour and direct print with text, logos, etc. on request
Dimensions mm (W X H)
1RU (483 × 44,5)
Dimensions mm (W X H)
2RU (483 × 89)
Dimensions mm (W X H)
3RU (483 × 133,5)
Dimensions mm (W X H)
4RU (483 × 177,8)
Dimensions mm (W X H)
6RU (483 × 265,9)
Dimensions mm (D)
UNI (44)
Dimensions mm (D)
AR1 (91)
Dimensions mm (D)
MAM (210)

Wall rack surface box

Flight case (Briefcase)

Materials and dimensions
Position
Surfaces
Installation
Mobile
Hinges and locking
Galvanised sheet
Handle
Plastic
Corners
Plastic (MOD: ALUM) or Galvanised sheet (MOD: ALUM-W 2015)
Frames
Aluminium
Foot
Rubber
Surface
Plywood and exterior face covered with 4 mm (MOD: ALUM) or 6 mm PVC (MOD: ALUM-W 2015)
Inner coating
Foam 5 mm (ALUM-W 2015)
Connection panel
Extruded aluminium
Inside finish
Electrostatic powder coating 100-150 µm. Colour on request. Direct print with text, logos, etc. on request.
Acronym
M

Reference installations

Case studies

See all case studies
Ateneo de Madrid

Ateneo de Madrid

Real Madrid

Real Madrid

CSIC

CSIC

Generalitat

Generalitat
